1 Use Stiffness Matrix To Compute Reactions At Boundaries And Element Force Considering The Following Conditions Ea 1 (86.89 KiB) Viewed 12 times
Please show procedure clearly

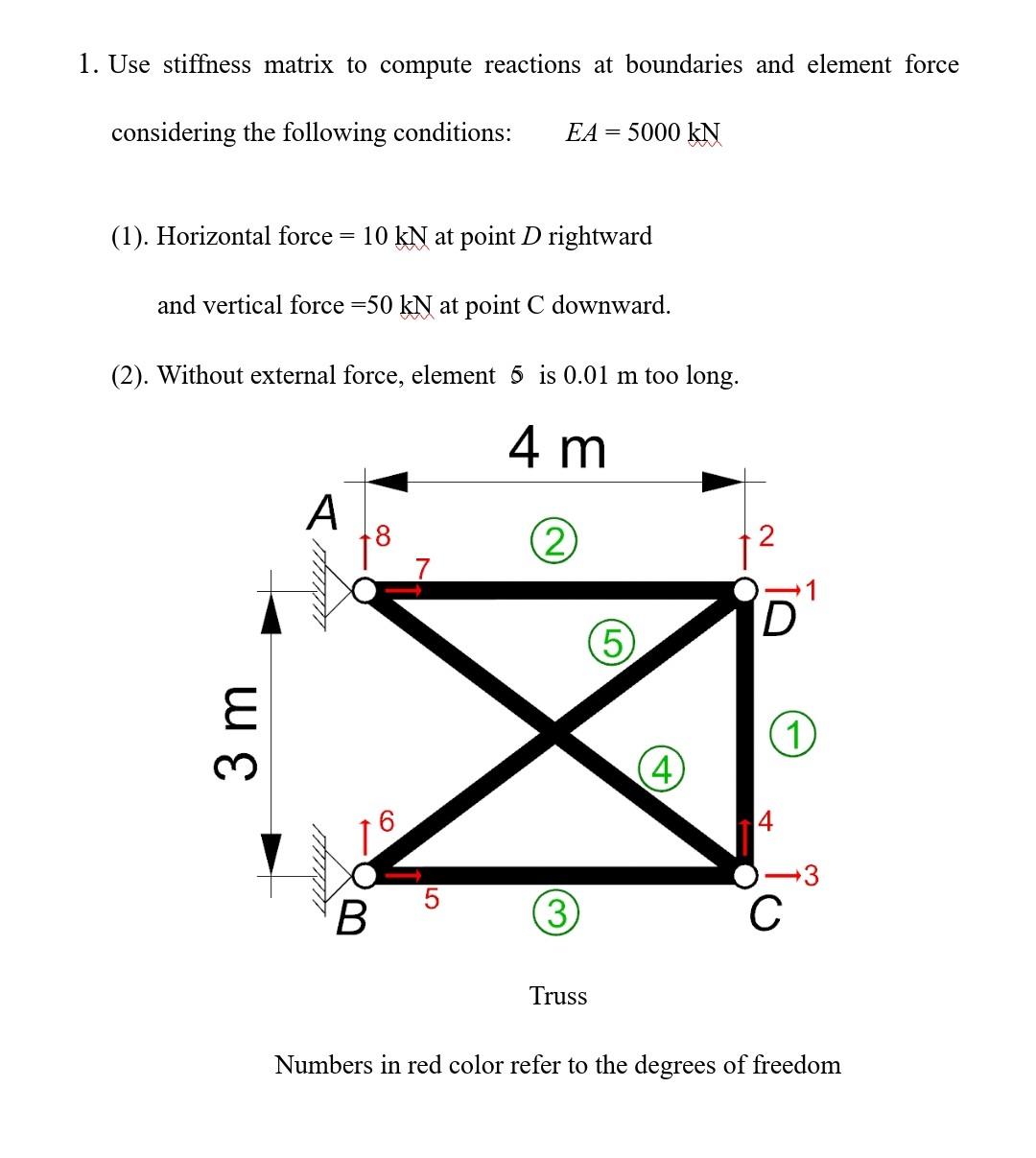

1. Use stiffness matrix to compute reactions at boundaries and element force considering the following conditions: EA = 5000 kN m (1). Horizontal force = 10 kN at point D rightward and vertical force =50 kN at point C downward. (2). Without external force, element 5 is 0.01 m too long. 4 m A (2) 2 D 3 m (O 6 (5) (4) 1 B (3) с Truss Numbers in red color refer to the degrees of freedom
