Elevation 30 20 10 0 0 10 20 1.606 30 Distance 40 Slide Mass Parameter Method Factor of Safety Total Volume Total Weight

[answerhappygod]

Elevation 30 20 10 0 0 10 20 1 606 30 Distance 40 Slide Mass Parameter Method Factor Of Safety Total Volume Total Weight 1 (28.19 KiB) Viewed 14 times

Elevation 30 20 10 0 0 10 20 1 606 30 Distance 40 Slide Mass Parameter Method Factor Of Safety Total Volume Total Weight 2 (56.02 KiB) Viewed 14 times

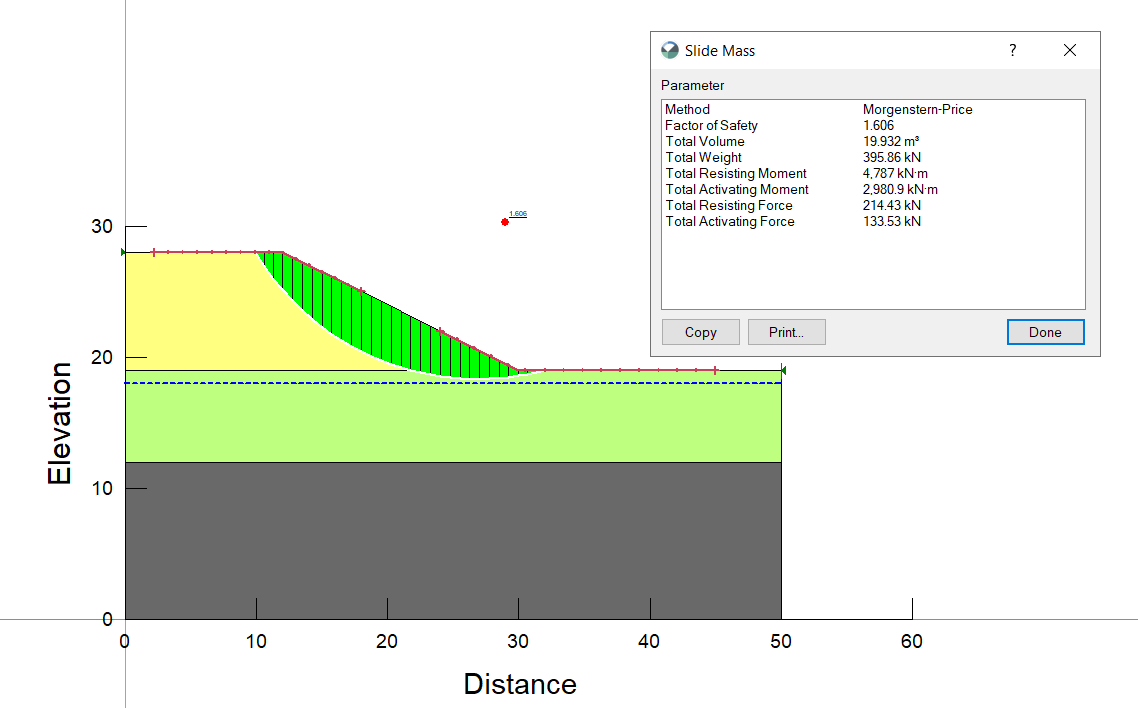

First Picture is Long Term Condition where FOS is solved via Entry and Exit

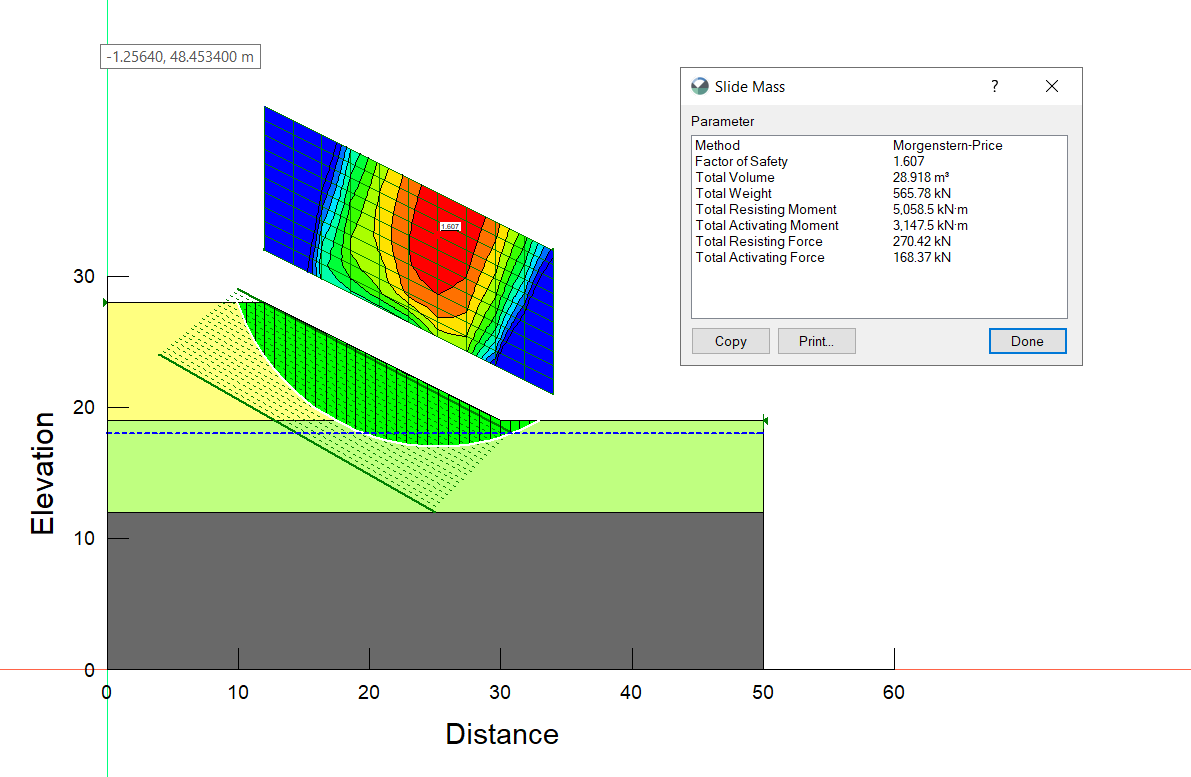

Second Picture is Long Term Condition where FOS is solved via Grid and Radius
If the results from the two different methods are different, discuss the reasons for the difference.
Thank you
Elevation 30 20 10 0 0 10 20 1.606 30 Distance 40 Slide Mass Parameter Method Factor of Safety Total Volume Total Weight Total Resisting Moment Total Activating Moment Total Resisting Force Total Activating Force Copy Print... 50 Morgenstern-Price 1.606 19.932 m³ 395.86 kN 4,787 kN m 2,980.9 kN.m 214.43 kN 133.53 kN 60 ? X Done
Elevation 30 20 10 0 -1.25640, 48.453400 m 0 10 20 30 Distance 40 Slide Mass Parameter Method Factor of Safety Total Volume Total Weight Total Resisting Moment Total Activating Moment Total Resisting Force Total Activating Force Copy Print... 50 ? Morgenstern-Price 1.607 28.918 m³ 565.78 KN 5,058.5 kN m 3,147.5 kN.m 270.42 kN 168.37 kN 60 X Done
