Question 2 (30%) Figure 2 display plan of a manufacturing area that are to be covered (Clear height inside the structure

[answerhappygod]

Question 2 30 Figure 2 Display Plan Of A Manufacturing Area That Are To Be Covered Clear Height Inside The Structure 1 (1.55 MiB) Viewed 11 times

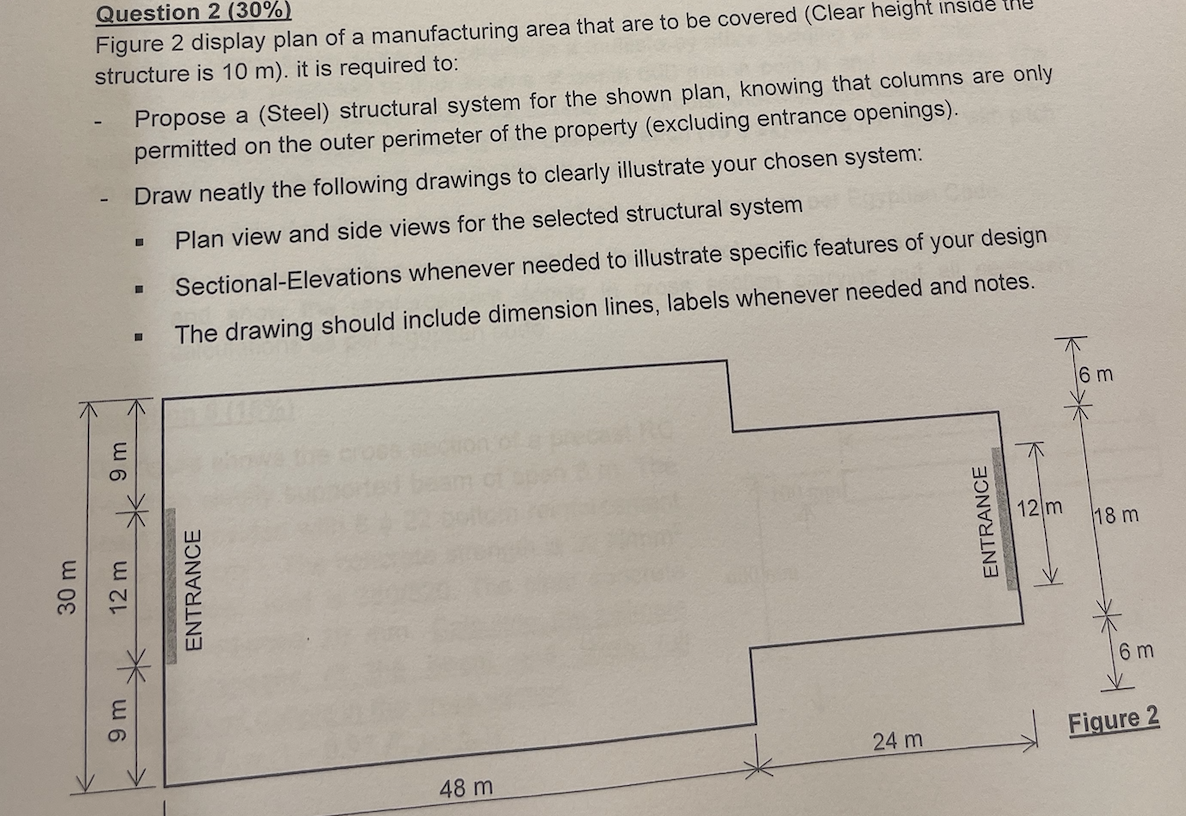

Question 2 (30%) Figure 2 display plan of a manufacturing area that are to be covered (Clear height inside the structure is 10 m). it is required to: Propose a (Steel) structural system for the shown plan, knowing that columns are only permitted on the outer perimeter of the property (excluding entrance openings). Draw neatly the following drawings to clearly illustrate your chosen system: Plan view and side views for the selected structural system Sectional-Elevations whenever needed to illustrate specific features of your design The drawing should include dimension lines, labels whenever needed and notes. 6 m 52 48 m 9 m 30 m 12 m ENTRANCE 9 m 24 m ENTRANCE 12 m 18 m 6 m Figure 2
