Material Strengths: Fy=345 MPa, Fu = 483 MPa The channel (C230X30) is connected with four M20 bolts to the 12 mm thick g

Post by answerhappygod »

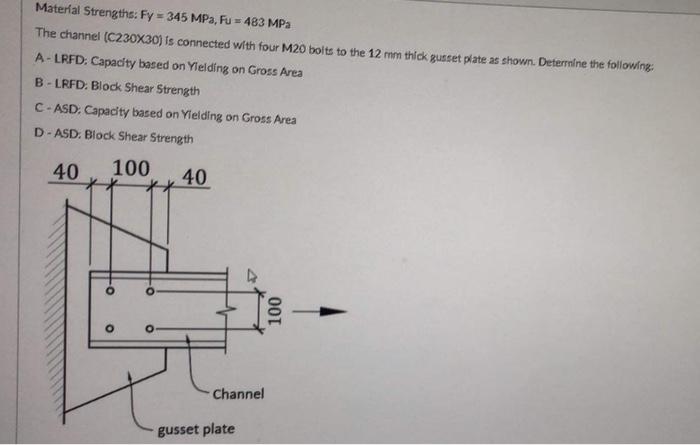

Material Strengths Fy 345 Mpa Fu 483 Mpa The Channel C230x30 Is Connected With Four M20 Bolts To The 12 Mm Thick G 1
Material Strengths Fy 345 Mpa Fu 483 Mpa The Channel C230x30 Is Connected With Four M20 Bolts To The 12 Mm Thick G 1 (26.83 KiB) Viewed 28 times
Material Strengths: Fy=345 MPa, Fu = 483 MPa The channel (C230X30) is connected with four M20 bolts to the 12 mm thick gusset plate as shown. Determine the following: A-LRFD: Capacity based on Yielding on Gross Area B-LRFD. Block Shear Strength C-ASD. Capacity based on Yielding on Gross Area D-ASD. Block Shear Strength 100 40 40 -0 to O Channel gusset plate 100
