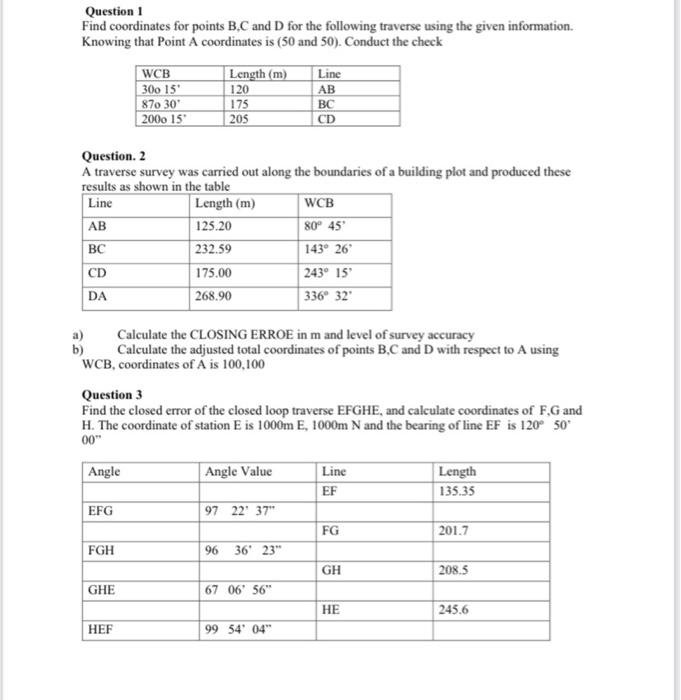

Question 1 Find coordinates for points B,C and D for the following traverse using the given information. Knowing that Point A coordinates is (50 and 50). Conduct the check WCB Length (m) Line 300 15' 120 AB 870 30 175 BC 2000 15 205 CD Question. 2 A traverse survey was carried out along the boundaries of a building plot and produced these results as shown in the table Line Length (m) WCB AB 125.20 80° 45' BC 232.59 143° 26° CD 175.00 243° 15' DA 268.90 336° 32' a) Calculate the CLOSING ERROE in m and level of survey accuracy b) Calculate the adjusted total coordinates of points B,C and D with respect to A using WCB, coordinates of A is 100,100 Question 3 Find the closed error of the closed loop traverse EFGHE, and calculate coordinates of F,G and H. The coordinate of station E is 1000m E, 1000m N and the bearing of line EF is 120° 50° 00" Angle Angle Value Line Length EF 135.35 EFG 97 22' 37" FG 201.7 FGH 96 36' 23" GH 208.5 GHE 67 06' 56" HE 245.6 HEF 99 54' 04"
