Answer and step by step solution. thank u

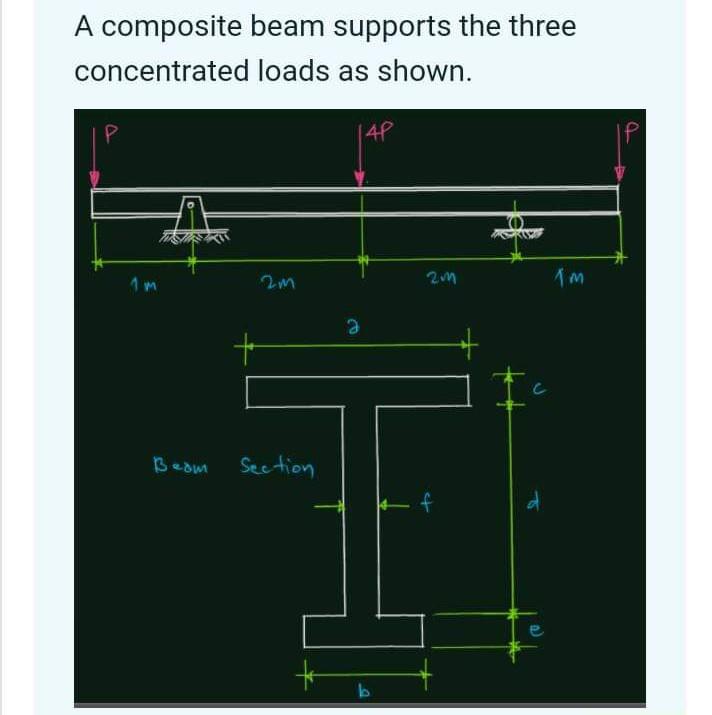

A composite beam supports the three concentrated loads as shown. 14P 1 m 2m Beam + Section 20 Im IP

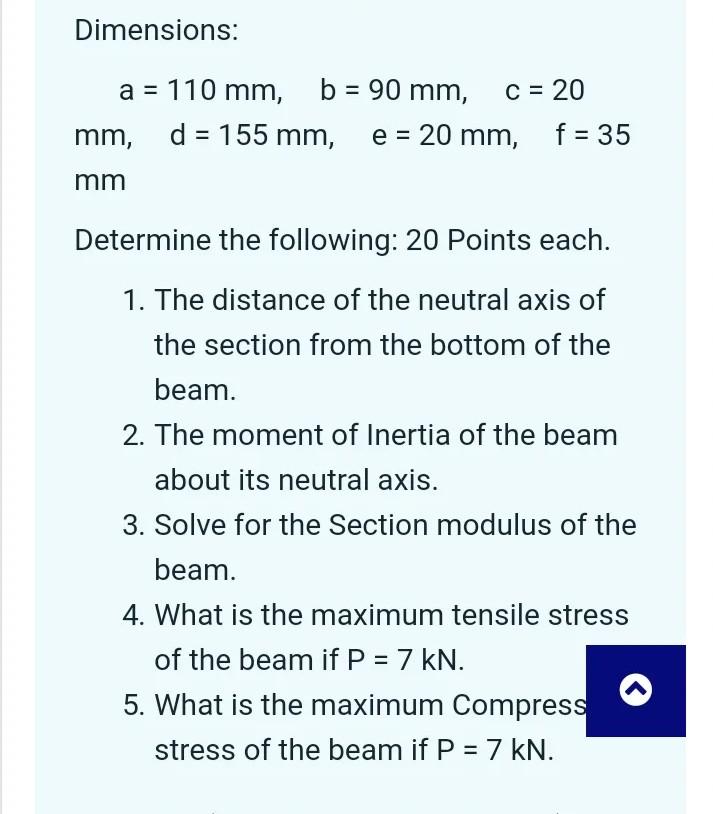

Dimensions: a = 110 mm, b = 90 mm, c = 20 mm, d = 155 mm, e = 20 mm, f = 35 mm Determine the following: 20 Points each. 1. The distance of the neutral axis of the section from the bottom of the beam. 2. The moment of Inertia of the beam about its neutral axis. 3. Solve for the Section modulus of the beam. 4. What is the maximum tensile stress of the beam if P = 7 kN. 5. What is the maximum Compress stress of the beam if P = 7 kN.
