Figure 1 below shows a built-up section. Calculate the following using BB as reference point. 2.1 The position of the ce

[answerhappygod]

Figure 1 Below Shows A Built Up Section Calculate The Following Using Bb As Reference Point 2 1 The Position Of The Ce 1 (1.19 MiB) Viewed 14 times

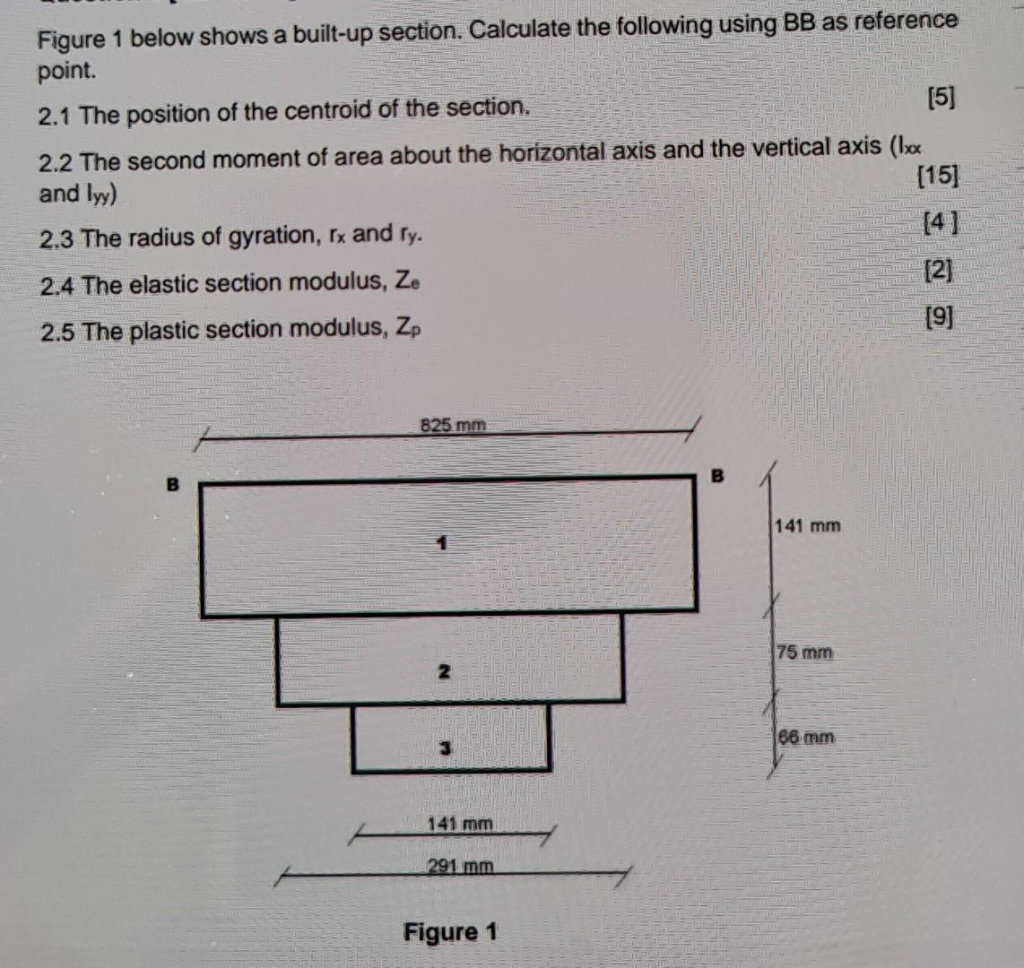

Figure 1 below shows a built-up section. Calculate the following using BB as reference point. 2.1 The position of the centroid of the section. [5] 2.2 The second moment of area about the horizontal axis and the vertical axis (lxx and lyy) [15] 2.3 The radius of gyration, rx and ry. [4] 2.4 The elastic section modulus, Ze [2] 2.5 The plastic section modulus, Zp [9] 825 mm 2 3 141 mm 291 mm Figure 1 minitrener Tentang 141 mm 75 mm 66 mm
