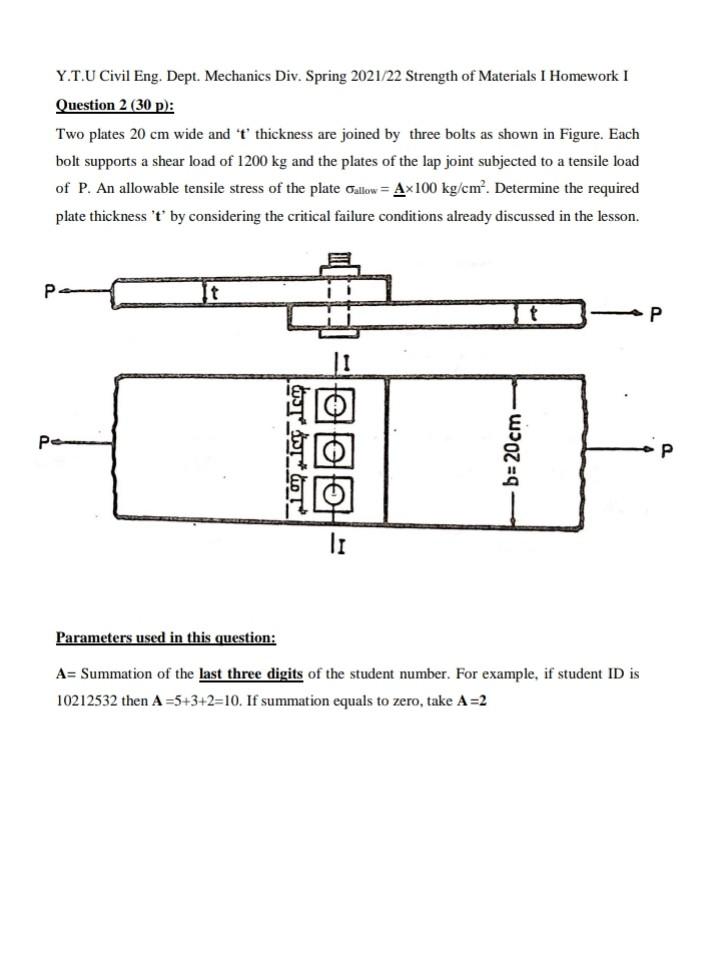

Y.T.U Civil Eng. Dept. Mechanics Div. Spring 2021/22 Strength of Materials I Homework I Question 2 (30 p): Two plates 20 cm wide and 't' thickness are joined by three bolts as shown in Figure. Each bolt supports a shear load of 1200 kg and the plates of the lap joint subjected to a tensile load of P. An allowable tensile stress of the plate Gallow=Ax100 kg/cm². Determine the required plate thickness 't' by considering the critical failure conditions already discussed in the lesson. P -P P P O वाठा Parameters used in this question: A= Summation of the last three digits of the student number. For example, if student ID is 10212532 then A=5+3+2=10. If summation equals to zero, take A =2 b=20cm-
