2. A reinforced concrete short column has a cross-sectional size of 450 x 300 mm and is loaded as shown. It is reinforce

[answerhappygod]

2 A Reinforced Concrete Short Column Has A Cross Sectional Size Of 450 X 300 Mm And Is Loaded As Shown It Is Reinforce 1 (65.29 KiB) Viewed 14 times

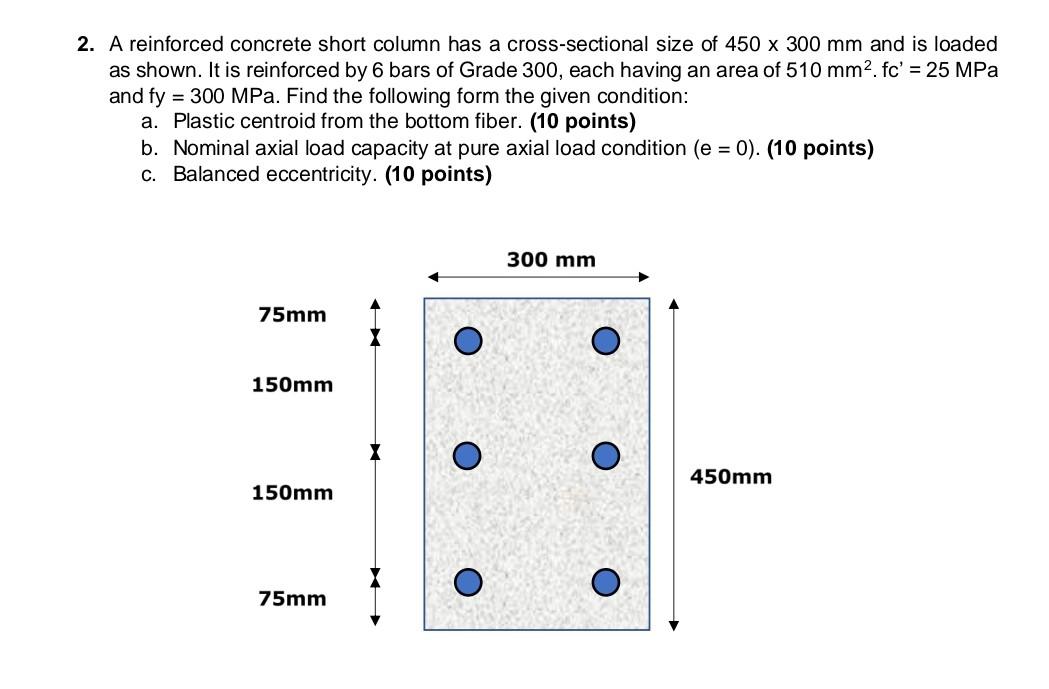

2. A reinforced concrete short column has a cross-sectional size of 450 x 300 mm and is loaded as shown. It is reinforced by 6 bars of Grade 300, each having an area of 510 mm². fc' = 25 MPa and fy = 300 MPa. Find the following form the given condition: a. Plastic centroid from the bottom fiber. (10 points) b. Nominal axial load capacity at pure axial load condition (e = 0). (10 points) c. Balanced eccentricity. (10 points) 300 mm 75mm 150mm 450mm 150mm 75mm
