1 Suppose The Off Axis Layers In The Tube Of Failure Example 1 Were At 30 Instead Of 20 A What Would Be The Axia 1 (78.46 KiB) Viewed 12 times

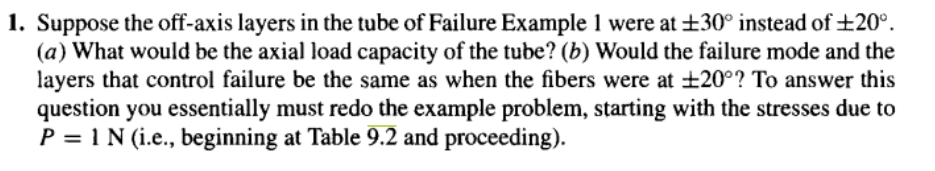

1. Suppose the off-axis layers in the tube of Failure Example 1 were at ±30° instead of ±20°. (a) What would be the axial load capacity of the tube? (b) Would the failure mode and the layers that control failure be the same as when the fibers were at ±20°? To answer this question you essentially must redo the example problem, starting with the stresses due to P = 1 N (i.e., beginning at Table 9.2 and proceeding).
+20° -20° FIGURE 9.8 Tube with axial load P, Failure Example 1 H = 1.50 mm P R = 25.0 mm
TABLE 9.2 Principal material system stresses (Pa) in axially loaded tube for P = 1 N Layer 01 02 712 +20° +3830 -112.3 -148.7 -20° +3830 -112.3 +148.7 0° +4770 -168.6 0
