What is the maximum transverse shear stress in MPa ?
If the load was switched and now carries a uniform load of w =
5.1 kN/m, what is the new maximum transverse shear stress in
MPa?

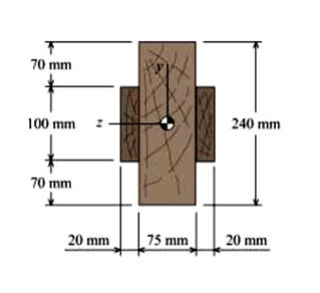

A simply supported beam with length L = 4 m carries a concentrated load at midpsan, P = 3.8 kN. The cross-section is shown. Give final answer with 3 decimal places.
70 mm 100 mm 70 mm 20 mm 75 mm 240 mm 20 mm
