1. Determine the magnitude of the maximum shear force on the
inclined member in kN?
2. Determine the magnitude of the maximum shear force on the
horizontal member in kN.
3. Determine the distance in m of the maximum bending moment on
the horizontal member from point B.

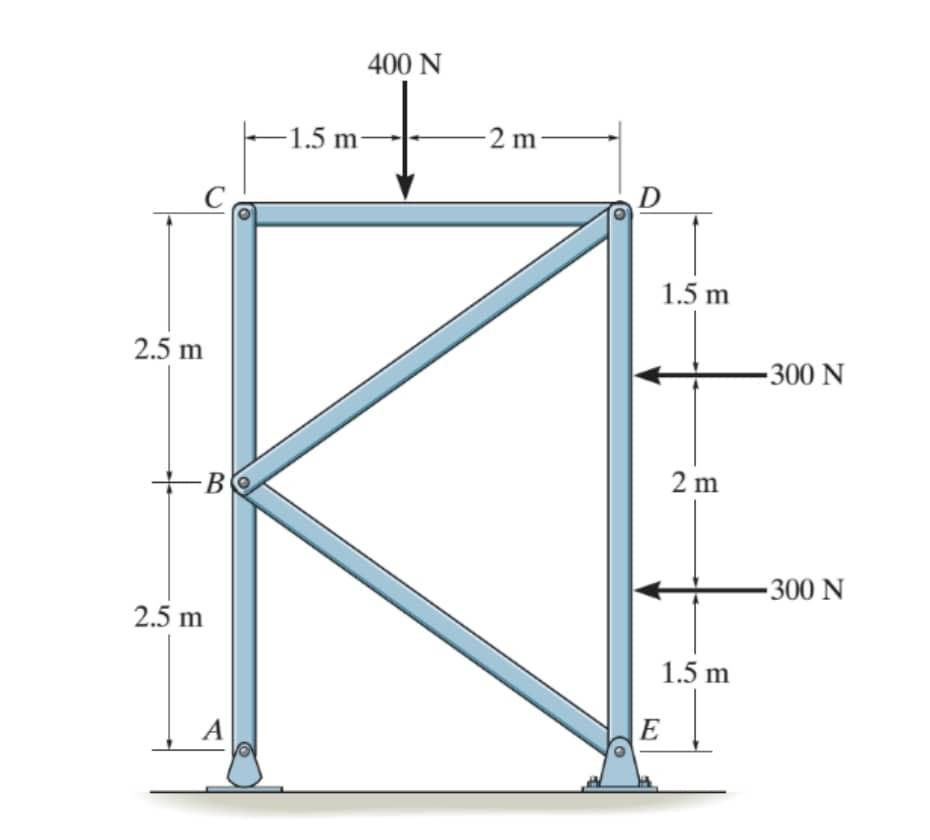

1 Determine The Magnitude Of The Maximum Shear Force On The Inclined Member In Kn 2 Determine The Magnitude Of The Ma 1 (39.24 KiB) Viewed 22 times
C 2.5 m +B 2.5 m A 400 N -1.5 m- -2 m- 1.5 m 2 m 1.5 m E -300 N -300 N
