top at midpsan?
What is the bending stress in MPa at a point 20 mm from the top
at midspan?
What is the bending stress in MPa at a point 10 mm from the
bottom at midspan?
What is the bending stress in MPa at a point 20 mm from the
bottom at midspan?

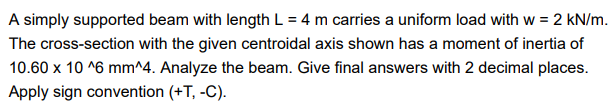

A simply supported beam with length L = 4 m carries a uniform load with w = 2 kN/m. The cross-section with the given centroidal axis shown has a moment of inertia of 10.60 x 10 ^6 mm^4. Analyze the beam. Give final answers with 2 decimal places. Apply sign convention (+T, -C).

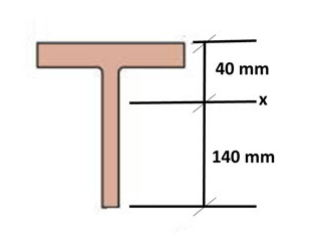

T 40 mm -X 140 mm
