A cantilever beam with length L = 4 m carries a uniform load with w = 5 kN/m. The cross-section with the given centroida

Post by answerhappygod »

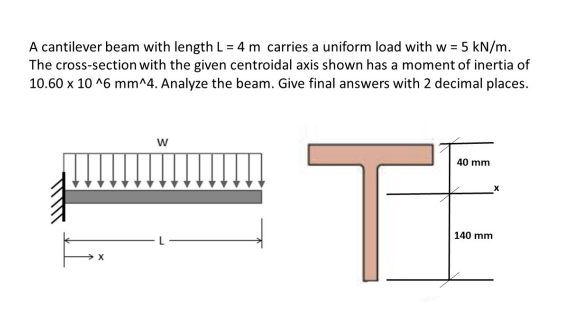

A Cantilever Beam With Length L 4 M Carries A Uniform Load With W 5 Kn M The Cross Section With The Given Centroida 1
A Cantilever Beam With Length L 4 M Carries A Uniform Load With W 5 Kn M The Cross Section With The Given Centroida 1 (42.78 KiB) Viewed 17 times
What is the maximum TENSILE and COMPRESSIVE bending
stresses?
What is the maximum transverse shear stress?
A cantilever beam with length L = 4 m carries a uniform load with w = 5 kN/m. The cross-section with the given centroidal axis shown has a moment of inertia of 10.60 x 10^6 mm^4. Analyze the beam. Give final answers with 2 decimal places. W 40 mm TE 140 mm
