Question 3 Based On Your Answer In Question 2 Calculate The Vertical Displacement Av For Joint A If The Cross Section 1 (37.39 KiB) Viewed 15 times

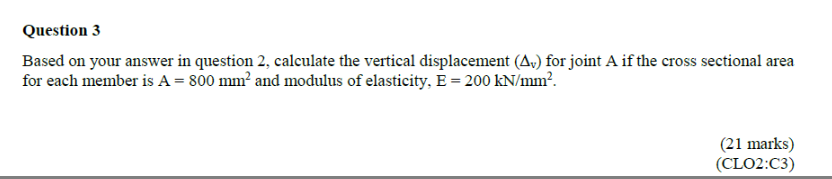

You can refer to question 2 from here : Question 3 Based on your answer in question 2, calculate the vertical displacement (Av) for joint A if the cross sectional area for each member is A = 800 mm² and modulus of elasticity, E = 200 kN/mm². (21 marks) (CLO2:C3)
