Question 2 By referring to the truss shown in Figure 2 below; a) Calculate the reactions at support E and D. b) Calculat

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 2 By referring to the truss shown in Figure 2 below; a) Calculate the reactions at support E and D. b) Calculat

Post by answerhappygod »

Question 2 By Referring To The Truss Shown In Figure 2 Below A Calculate The Reactions At Support E And D B Calculat 1
Question 2 By Referring To The Truss Shown In Figure 2 Below A Calculate The Reactions At Support E And D B Calculat 1 (66.91 KiB) Viewed 15 times

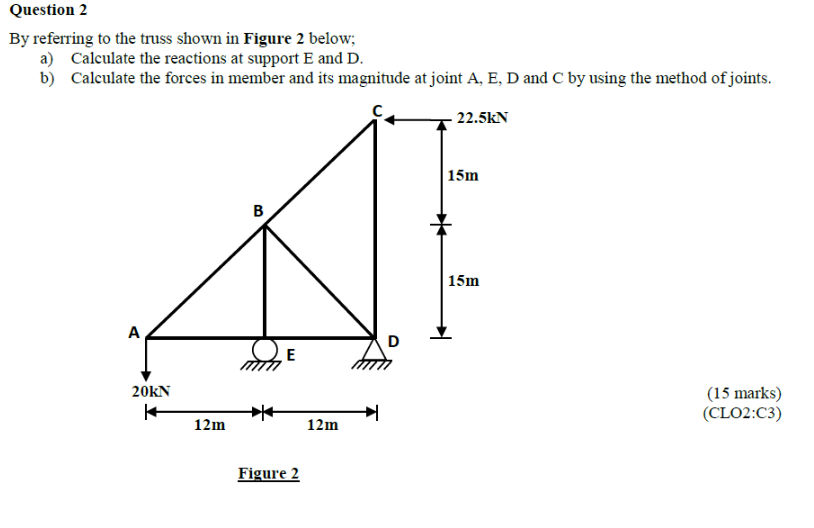

Question 2 By referring to the truss shown in Figure 2 below; a) Calculate the reactions at support E and D. b) Calculate the forces in member and its magnitude at joint A, E, D and C by using the method of joints. 22.5kN B A (15 marks) (CLO2:C3) 20KN ➜ 12m E Figure 2 12m D 15m 15m
