& Below figure shows a cantilever beam and its section. what should be minimum value of 'b' (with of a section) be able

Post by answerhappygod »

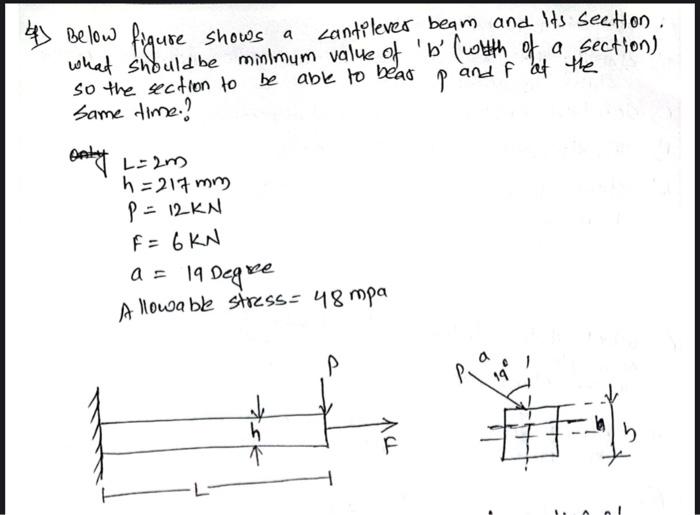

Below Figure Shows A Cantilever Beam And Its Section What Should Be Minimum Value Of B With Of A Section Be Able 1
Below Figure Shows A Cantilever Beam And Its Section What Should Be Minimum Value Of B With Of A Section Be Able 1 (35.57 KiB) Viewed 17 times
& Below figure shows a cantilever beam and its section. what should be minimum value of 'b' (with of a section) be able to bear and f at the P so the section to Same time.! onty L=2m h=217mm P = 12KN F = 6 KN a = 19 Degree Allowable stress = 48 mpa h TV 19 ##
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
