Task 13: Follow the Australian Standard 3600 & 5100 of the shear reinforcement and appropriate design aids to calculate

Post by answerhappygod »

Task 13 Follow The Australian Standard 3600 5100 Of The Shear Reinforcement And Appropriate Design Aids To Calculate 1
Task 13 Follow The Australian Standard 3600 5100 Of The Shear Reinforcement And Appropriate Design Aids To Calculate 1 (88.46 KiB) Viewed 12 times

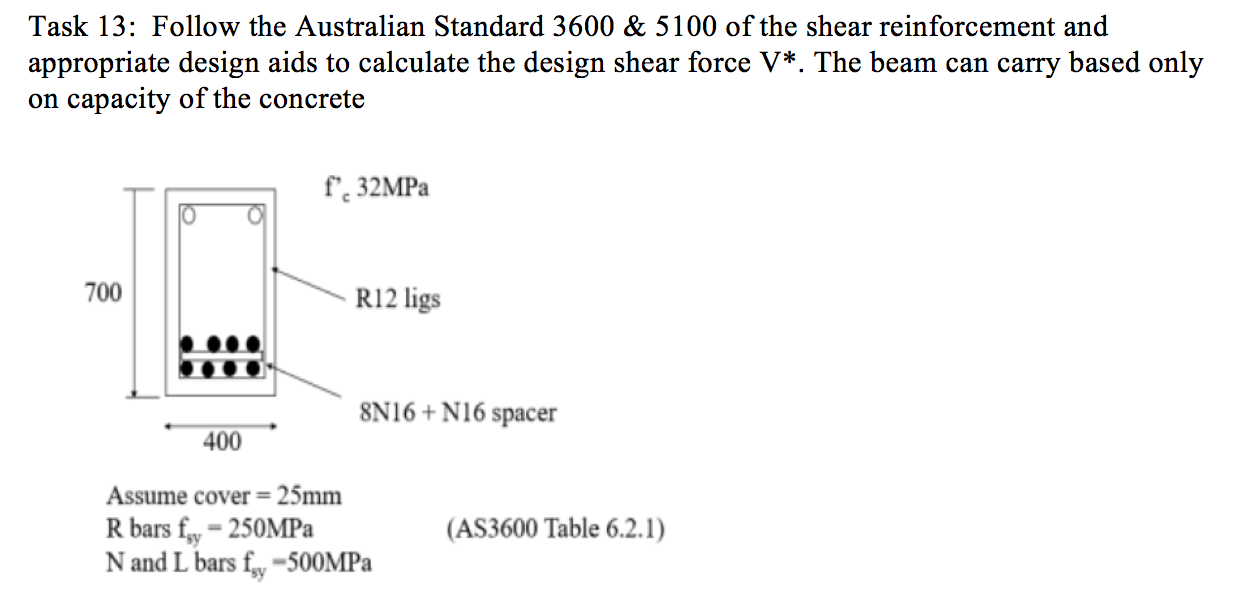

Task 13: Follow the Australian Standard 3600 & 5100 of the shear reinforcement and appropriate design aids to calculate the design shear force V*. The beam can carry based only on capacity of the concrete f' 32MPa 700 400 Assume cover = 25mm R bars fy -250MPa N and L bars fy -500MPa R12 ligs 8N16+ N16 spacer (AS3600 Table 6.2.1)
