Part A) Calculate the reactions for the beam below Part B) Draw the shear and moment diagrams for the beam

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Part A) Calculate the reactions for the beam below Part B) Draw the shear and moment diagrams for the beam

Post by answerhappygod »

Part A) Calculate the reactions for the beam below
Part B) Draw the shear and moment diagrams for the beam

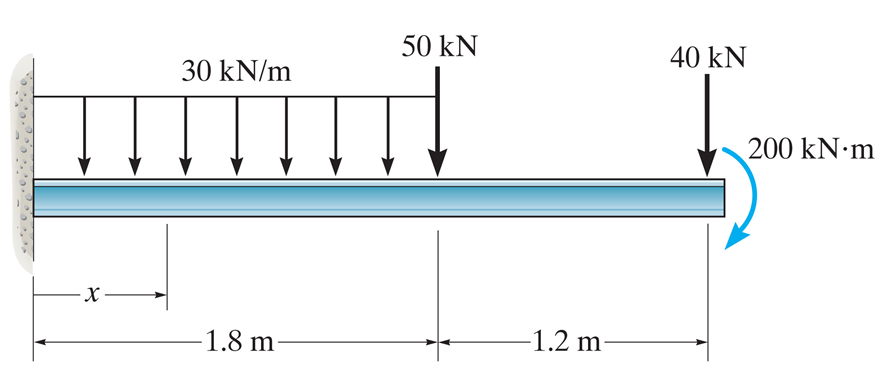

Part A Calculate The Reactions For The Beam Below Part B Draw The Shear And Moment Diagrams For The Beam 1
Part A Calculate The Reactions For The Beam Below Part B Draw The Shear And Moment Diagrams For The Beam 1 (46.66 KiB) Viewed 11 times
-X- 30 kN/m 1.8 m- 50 kN -1.2 m- 40 kN 200 kN•m
