Question 1. d P The figure (not drawn to scale) shows a cylindrical column submitted to a combined load: a compression o

Post by answerhappygod »

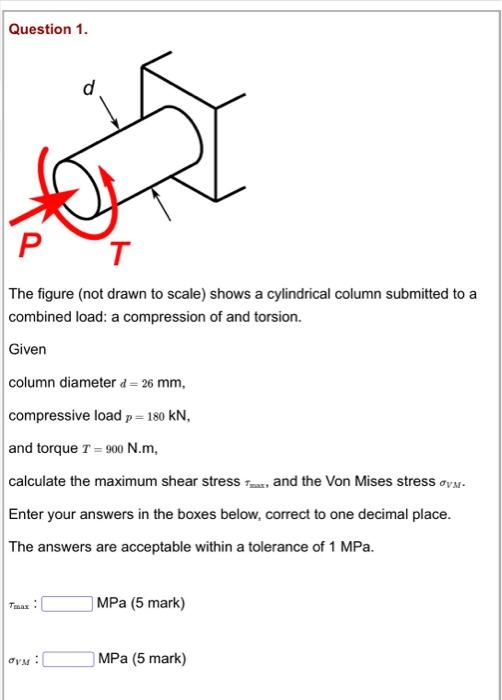

Question 1 D P The Figure Not Drawn To Scale Shows A Cylindrical Column Submitted To A Combined Load A Compression O 1
Question 1 D P The Figure Not Drawn To Scale Shows A Cylindrical Column Submitted To A Combined Load A Compression O 1 (34.71 KiB) Viewed 17 times
Question 1. d P The figure (not drawn to scale) shows a cylindrical column submitted to a combined load: a compression of and torsion. Given column diameter d = 26 mm, compressive load p = 180 KN, and torque T = 900 N.m, calculate the maximum shear stress and the Von Mises stress ov Enter your answers in the boxes below, correct to one decimal place. The answers are acceptable within a tolerance of 1 MPa. Trax MPa (5 mark) MPa (5 mark) аVM
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
