The inlet and outlet air of a coil with temperature of ts are shown in the following DBE figure. For the 3 different cas

Post by answerhappygod »

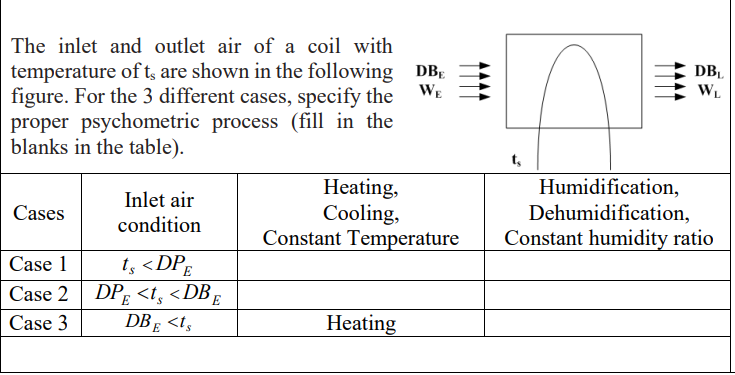

The Inlet And Outlet Air Of A Coil With Temperature Of Ts Are Shown In The Following Dbe Figure For The 3 Different Cas 1
The Inlet And Outlet Air Of A Coil With Temperature Of Ts Are Shown In The Following Dbe Figure For The 3 Different Cas 1 (71.93 KiB) Viewed 27 times
The inlet and outlet air of a coil with temperature of ts are shown in the following DBE figure. For the 3 different cases, specify the proper psychometric process (fill in the blanks in the table). Heating, Inlet air Cases Cooling, condition Constant Temperature Case 1 ts <DPE Case 2 DPE <ts <DBE DBE <ts Case 3 Heating DB₁ WL Humidification, Dehumidification, Constant humidity ratio
