Problem: A vessel in the figure as shown has an orifice on its side with a diameter of 5 cm. If the diameter of the jet

Post by answerhappygod »

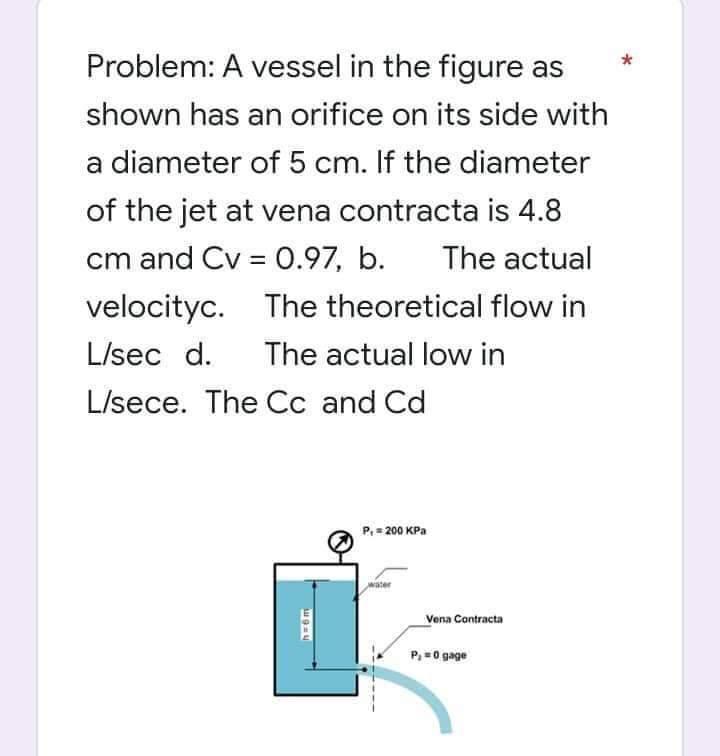

Problem A Vessel In The Figure As Shown Has An Orifice On Its Side With A Diameter Of 5 Cm If The Diameter Of The Jet 1
Problem A Vessel In The Figure As Shown Has An Orifice On Its Side With A Diameter Of 5 Cm If The Diameter Of The Jet 1 (38.94 KiB) Viewed 25 times
Problem: A vessel in the figure as shown has an orifice on its side with a diameter of 5 cm. If the diameter of the jet at vena contracta is 4.8 cm and Cv = 0.97, b. The actual velocityc. The theoretical flow in L/sec d. The actual low in L/sece. The Cc and Cd P₁ = 200 kPa Vena Contracta P₁ = 0 gage
