Two 3 4 X 8 In Plates Are Fastened By Four 5 8 In Diameter Rivets Use P 50 Kips 5 8 In Diameter Rivet P 8 In P 3 1 (521.36 KiB) Viewed 17 times
What is the maximum value of the normal stress on the
plate?
What is the shearing stress between the plates and the
rivets?
What is the bearing stress between the plates and the rivets?

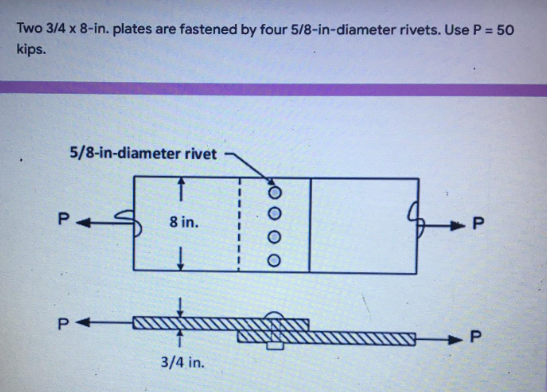

Two 3/4 x 8-in. plates are fastened by four 5/8-in-diameter rivets. Use P = 50 kips. 5/8-in-diameter rivet P. 8 in. P 3/4 in. P4 P
