Problem-1 You are the designer and asked to design a constrained planar linkage mechanism to move a rigid body (represen

Post by answerhappygod »

Problem 1 You Are The Designer And Asked To Design A Constrained Planar Linkage Mechanism To Move A Rigid Body Represen 1
Problem 1 You Are The Designer And Asked To Design A Constrained Planar Linkage Mechanism To Move A Rigid Body Represen 1 (38.11 KiB) Viewed 17 times
PLEASE CAN YOU RE- SOLVE THIS QUESTION AGIAN I THINK THAT THE
SOLUTION PROVIDED IS NOT CORRECT

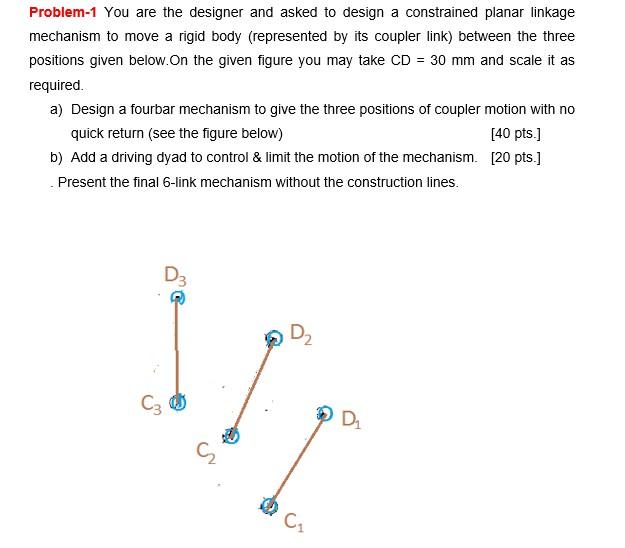

Problem-1 You are the designer and asked to design a constrained planar linkage mechanism to move a rigid body (represented by its coupler link) between the three positions given below. On the given figure you may take CD = 30 mm and scale it as required. a) Design a fourbar mechanism to give the three positions of coupler motion with no quick return (see the figure below) [40 pts.] [20 pts.] b) Add a driving dyad to control & limit the motion of the mechanism. Present the final 6-link mechanism without the construction lines. D3 D₁ C3 C₁
