that satisfies the conditions stated below.
Use ONLY the available components
listed.
• Single Acting Cylinder
• Magnetic Proximity Sensor
• Double Acting Cylinder
• Pressure Sensor
• One-way flow control valve
• Inductive Proximity Sensor
• Pushbutton Module
• Capacitive Proximity Sensor
• Relay Module
• Optical Proximity Sensor
• Relay Module w/ Time Delay
• 3/2-way solenoid valve w/ spring return, normally-closed
• Change-Over Switch w/ roller • 5/2-way solenoid impulse
valve
• 5/2-way solenoid valve w/ spring return
- Maintain 4 bars operating pressure in all problems
− Always use a Magnetic Proximity Sensor to indicate the
position of cylinders (min or max stroke only)
− Always provide the State Diagram profile of each cylinder
− Circuit operation must be repeatable
- Design Using Fluidsim And Construct The Pneumatic Circuits That Satisfies The Conditions Stated Below Use Only The Av 1 (139.04 KiB) Viewed 25 times

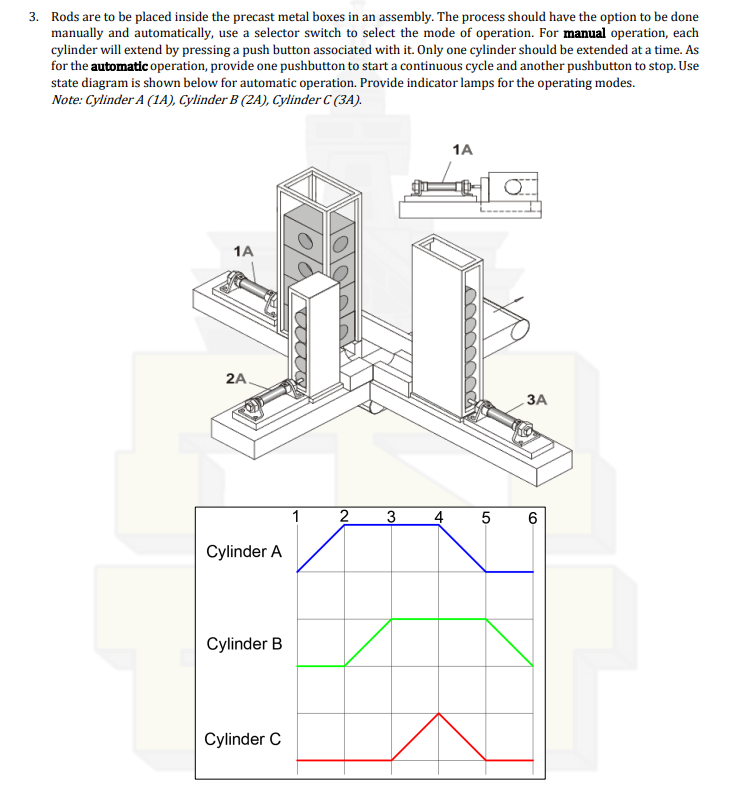

3. Rods are to be placed inside the precast metal boxes in an assembly. The process should have the option to be done manually and automatically, use a selector switch to select the mode of operation. For manual operation, each cylinder will extend by pressing a push button associated with it. Only one cylinder should be extended at a time. As for the automatic operation, provide one pushbutton to start a continuous cycle and another pushbutton to stop. Use state diagram is shown below for automatic operation. Provide indicator lamps for the operating modes. Note: Cylinder A (1A), Cylinder B (2A), Cylinder C (3A). 1A o 1A 2A Cylinder A Cylinder B Cylinder C 1 2 3 3A 4 5 6
