Induction Motors with Unbalanced Voltage Supply Assume we have an induction motor with the following data Power and Volt

[answerhappygod]

Induction Motors With Unbalanced Voltage Supply Assume We Have An Induction Motor With The Following Data Power And Volt 1 (354.96 KiB) Viewed 40 times

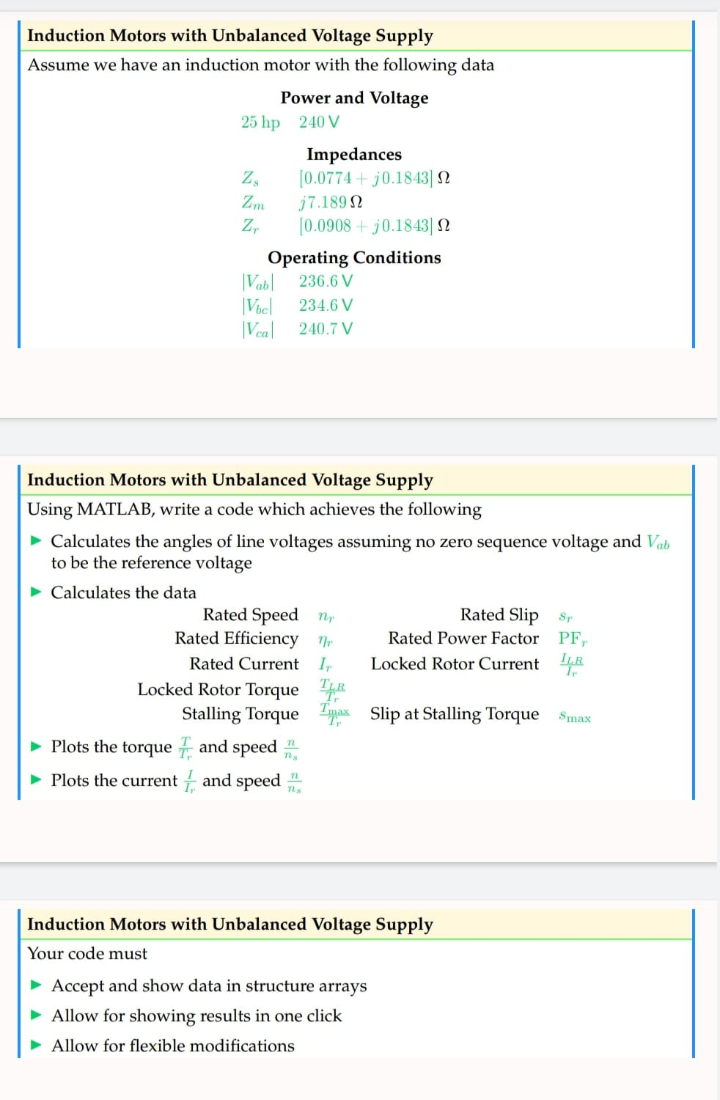

Induction Motors with Unbalanced Voltage Supply Assume we have an induction motor with the following data Power and Voltage 25 hp 240 V Impedances Z₂ [0.0774+j0.1843| 2 Zm j7.189 Z [0.0908 +0.1843] Operating Conditions Vabl 236.6 V |Vbel 234.6 V Veal 240.7 V Induction Motors with Unbalanced Voltage Supply Using MATLAB, write a code which achieves the following ► Calculates the angles of line voltages assuming no zero sequence voltage and Vab to be the reference voltage Calculates the data Rated Speed nr Rated Efficiency nr Rated Slip Sr PF, Rated Power Factor Rated Current IT Locked Rotor Current ILR Locked Rotor Torque T Stalling Torque Tax Slip at Stalling Torque Smax ► Plots the torque and speed # ► Plots the current and speed Induction Motors with Unbalanced Voltage Supply Your code must ► Accept and show data in structure arrays ► Allow for showing results in one click ►Allow for flexible modifications
