1. a) Determine the operating conditions of the ideal diodes. Show your calculations for all possible diode states. b) C

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. a) Determine the operating conditions of the ideal diodes. Show your calculations for all possible diode states. b) C

Post by answerhappygod »

1 A Determine The Operating Conditions Of The Ideal Diodes Show Your Calculations For All Possible Diode States B C 1
1 A Determine The Operating Conditions Of The Ideal Diodes Show Your Calculations For All Possible Diode States B C 1 (28.55 KiB) Viewed 10 times

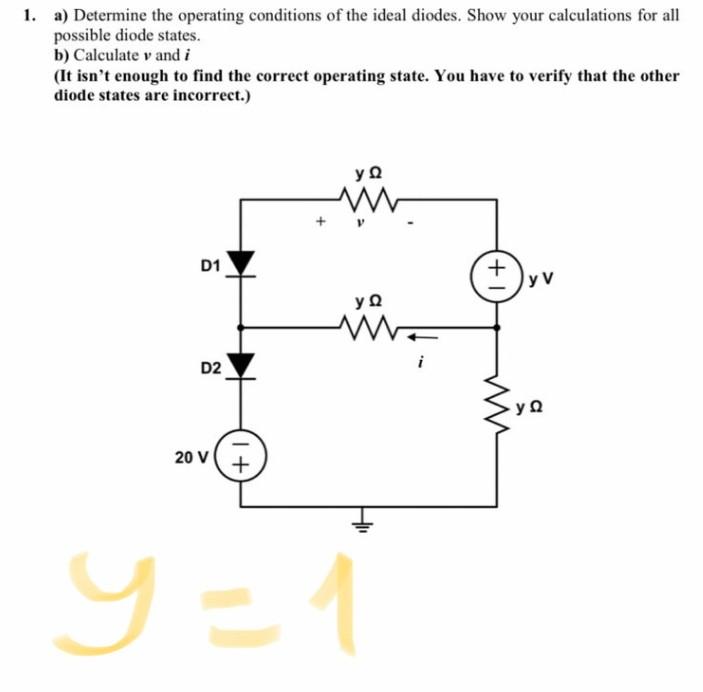

1. a) Determine the operating conditions of the ideal diodes. Show your calculations for all possible diode states. b) Calculate v and i (It isn't enough to find the correct operating state. You have to verify that the other diode states are incorrect.) yΩ ww D1 +yv yΩ www. D2 yo 20 V + 9=1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
