3. a) State two reasons why a three-phase system is preferred over a single-phase system for AC transmission and distrib

[answerhappygod]

3 A State Two Reasons Why A Three Phase System Is Preferred Over A Single Phase System For Ac Transmission And Distrib 1 (88.19 KiB) Viewed 12 times

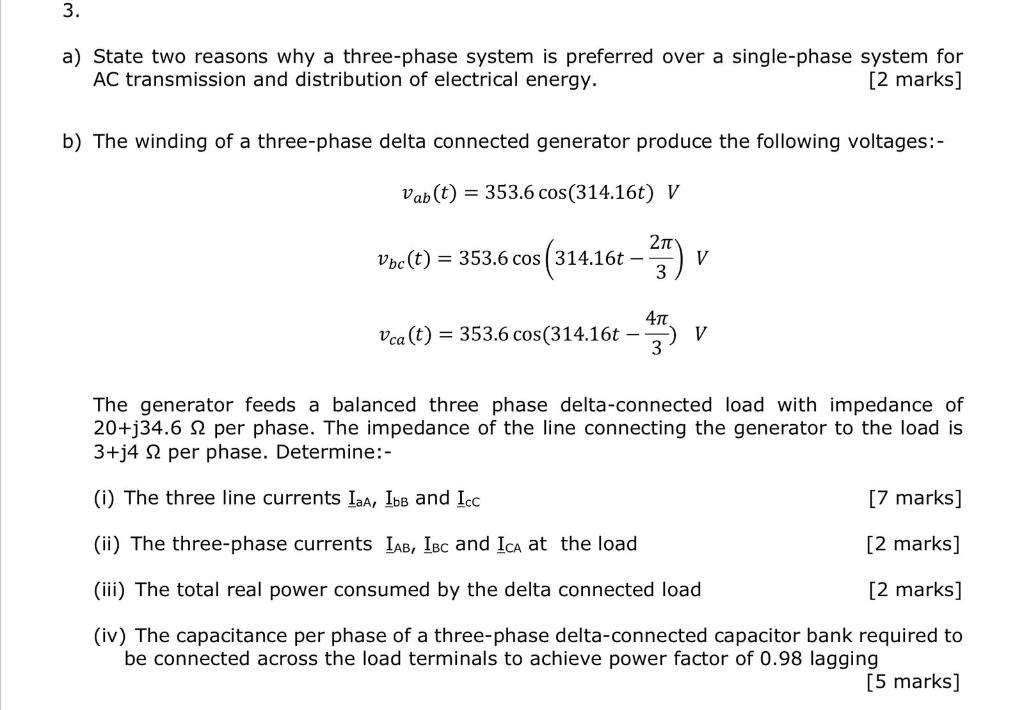

3. a) State two reasons why a three-phase system is preferred over a single-phase system for AC transmission and distribution of electrical energy. [2 marks] b) The winding of a three-phase delta connected generator produce the following voltages:- Vab (t) = 353.6 cos(314.16t) V 2π Vbc (t) = 353.6 cos 314.16t - V 3 4π Vca (t) = 353.6 cos(314.16t -) V 3 The generator feeds a balanced three phase delta-connected load with impedance of 20+j34.6 per phase. The impedance of the line connecting the generator to the load is 3+j4 2 per phase. Determine:- (i) The three line currents IaA, Ibв and Icc [7 marks] (ii) The three-phase currents IAB, IBC and ICA at the load [2 marks] (iii) The total real power consumed by the delta connected load [2 marks] (iv) The capacitance per phase of a three-phase delta-connected capacitor bank required to be connected across the load terminals to achieve power factor of 0.98 lagging [5 marks]
