For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to pos

[answerhappygod]

For The Circuit Shown In Figure 2 The Capacitor Was Initially Uncharged At Time T 0s The Switch Is Closed On To Pos 1 (24.59 KiB) Viewed 10 times

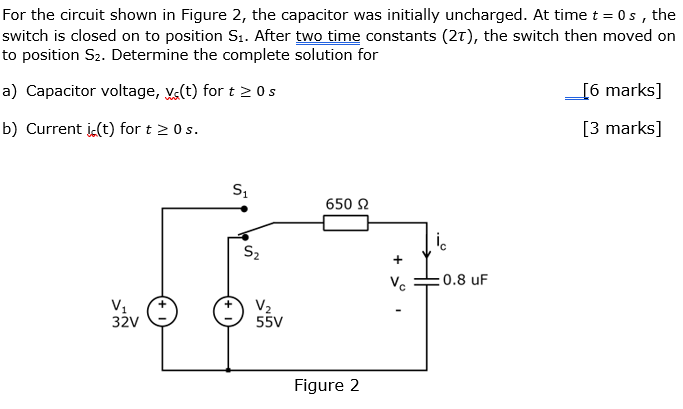

For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to position S₁. After two time constants (2T), the switch then moved on to position S₂. Determine the complete solution for a) Capacitor voltage, vs(t) for t≥ 0 s [6 marks] [3 marks] b) Current i(t) for t ≥ 0 s. S₁ 650 Ω ic V₁₂ 32V S₂ V₂ 55V Figure 2 + Vc 0.8 uF
