5. a) A 900V DC series motor is rated at 388 HP, 3000 RPM. It has an armature resistance of 0.5 and a field resistance o

Post by answerhappygod »

5 A A 900v Dc Series Motor Is Rated At 388 Hp 3000 Rpm It Has An Armature Resistance Of 0 5 And A Field Resistance O 1
5 A A 900v Dc Series Motor Is Rated At 388 Hp 3000 Rpm It Has An Armature Resistance Of 0 5 And A Field Resistance O 1 (121.51 KiB) Viewed 15 times

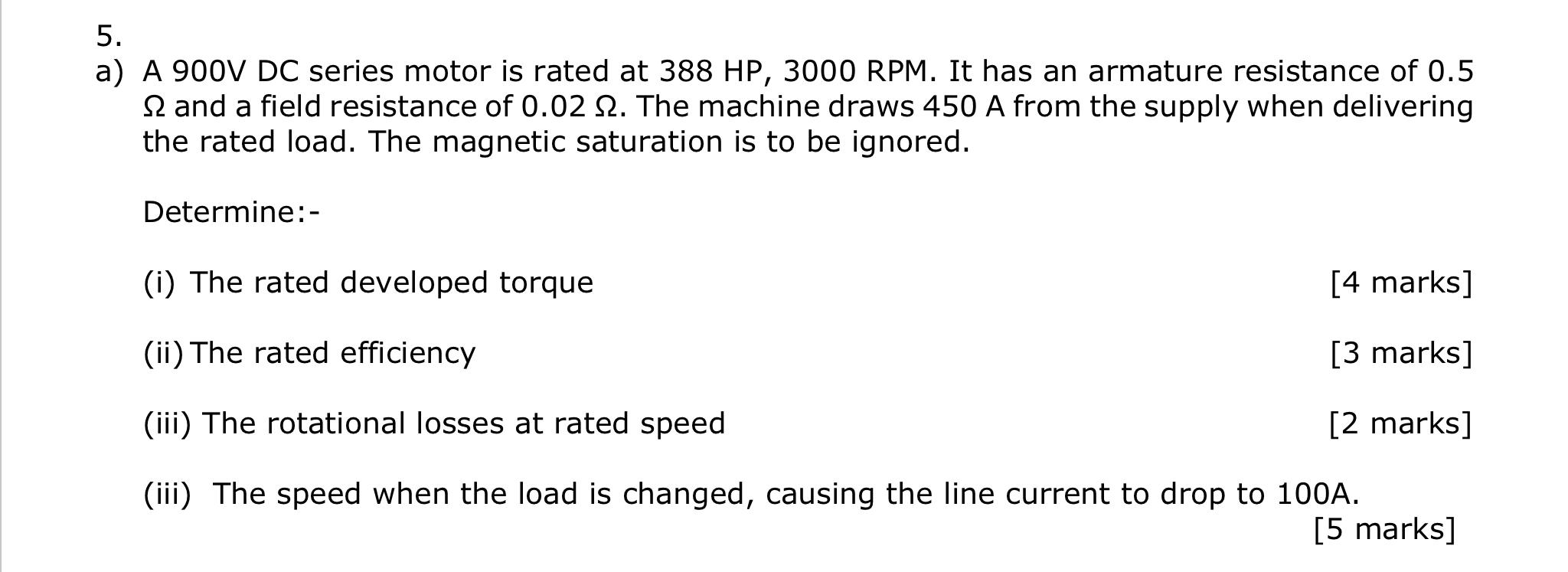

5. a) A 900V DC series motor is rated at 388 HP, 3000 RPM. It has an armature resistance of 0.5 and a field resistance of 0.02 22. The machine draws 450 A from the supply when delivering the rated load. The magnetic saturation is to be ignored. Determine:- (i) The rated developed torque [4 marks] [3 marks] (ii) The rated efficiency (iii) The rotational losses at rated speed [2 marks] (iii) The speed when the load is changed, causing the line current to drop to 100A. [5 marks]
