2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to

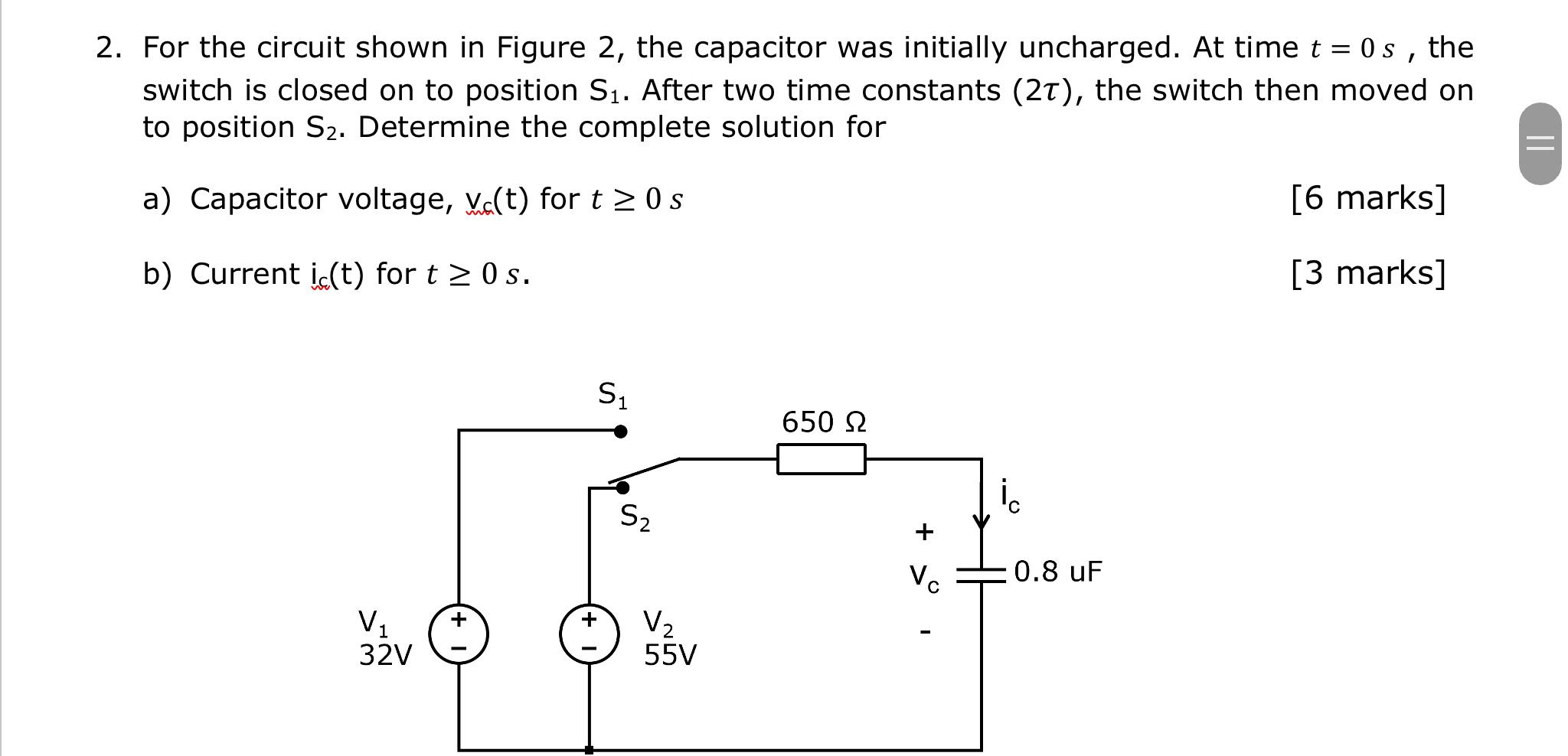

2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to position S₁. After two time constants (2T), the switch then moved on to position S₂. Determine the complete solution for a) Capacitor voltage, vc(t) for t≥ 0 s [6 marks] b) Current ic(t) for t≥ 0 s. [3 marks] S₁ 650 Ω V₁ 32V + + S₂ V₂ 55V Vc - 0.8 uF ||
