For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to pos

[answerhappygod]

For The Circuit Shown In Figure 2 The Capacitor Was Initially Uncharged At Time T 0s The Switch Is Closed On To Pos 1 (32.29 KiB) Viewed 13 times

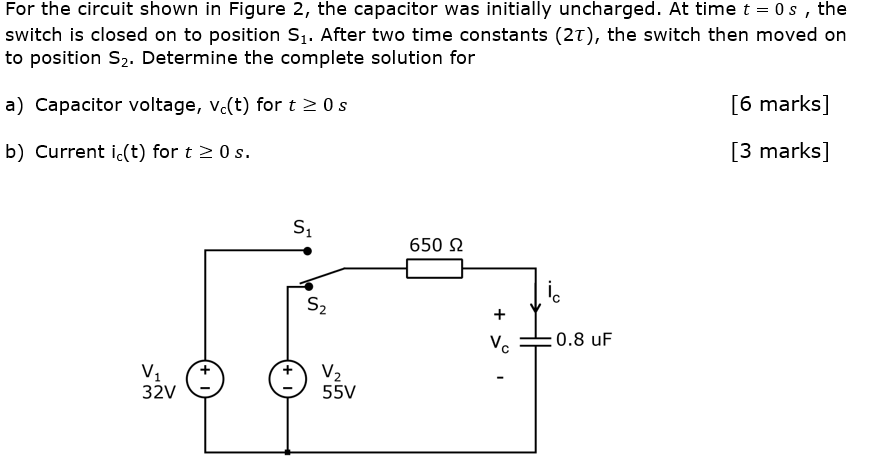

For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t = 0s, the switch is closed on to position S₁. After two time constants (2T), the switch then moved on to position S₂. Determine the complete solution for a) Capacitor voltage, vc(t) for t≥ 0 s [6 marks] b) Current ic(t) for t≥ 0 s. [3 marks] S₁ 650 Ω ic V₁ 32V S₂ V₂ 55V Vc 0.8 uF
