Q6. (a) Design a parallel Bandreject filter circuit with center frequency w, = 104 rad/s and quality factor Q = 14. Take

Post by answerhappygod »

Q6 A Design A Parallel Bandreject Filter Circuit With Center Frequency W 104 Rad S And Quality Factor Q 14 Take 1
Q6 A Design A Parallel Bandreject Filter Circuit With Center Frequency W 104 Rad S And Quality Factor Q 14 Take 1 (17.41 KiB) Viewed 18 times

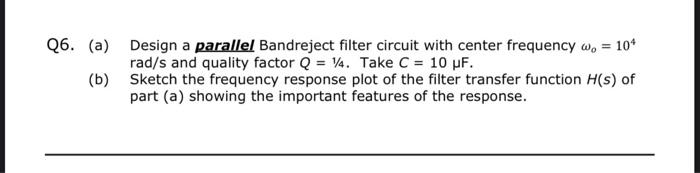

Q6. (a) Design a parallel Bandreject filter circuit with center frequency w, = 104 rad/s and quality factor Q = 14. Take C = 10 µF. (b) Sketch the frequency response plot of the filter transfer function H(s) of part (a) showing the important features of the response.
