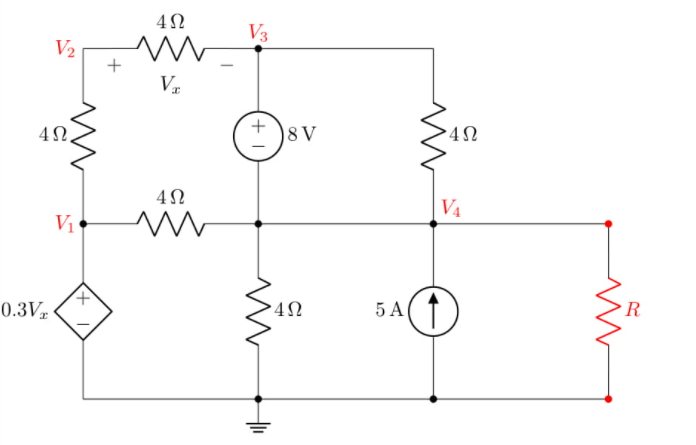

Use Nodal Analysis or source transformation to
simplify the circuit and find Thevenin Voltage (V_th), Resistance
(R_th) and short circuit current( I_sc). Show all the equations
properly. the majority of your marks here depend
on the clarity of your showing the steps and equations clearly.
Otherwise, you will not get any marks. FYI: resistor R is
the Load resistor
1.What's the value of Vth?
2.What's the value of
Isc?
3.What's the value of
Rth?
