Q1.) The following signal m(t) = 5 cos(21 x 10 x 103t) is present at FM transmitter with kg = 4 kHz /V and carrier ampli
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q1.) The following signal m(t) = 5 cos(21 x 10 x 103t) is present at FM transmitter with kg = 4 kHz /V and carrier ampli

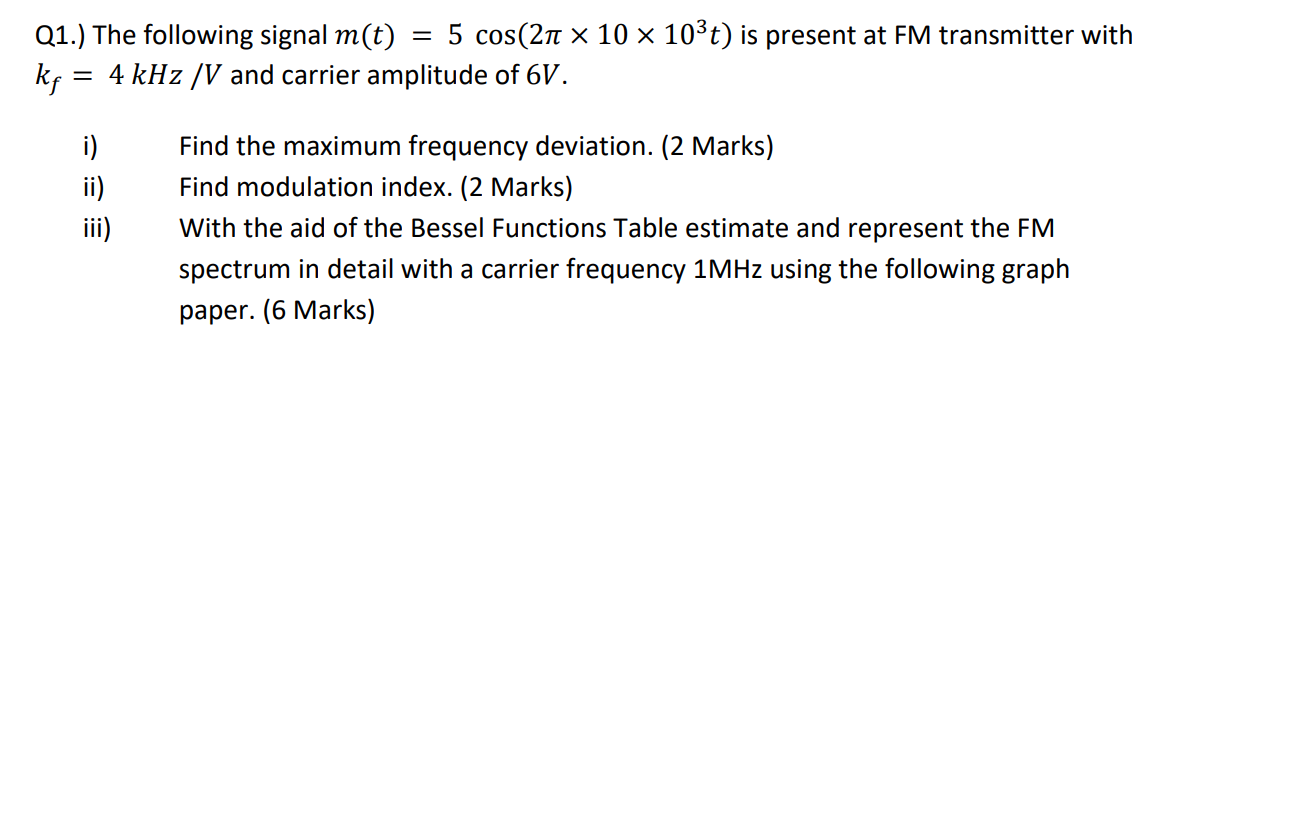

Q1.) The following signal m(t) = 5 cos(21 x 10 x 103t) is present at FM transmitter with kg = 4 kHz /V and carrier amplitude of 6V. i) ii) iii) Find the maximum frequency deviation. (2 Marks) Find modulation index. (2 Marks) With the aid of the Bessel Functions Table estimate and represent the FM spectrum in detail with a carrier frequency 1MHz using the following graph paper. (6 Marks)
