3. 0.80 um EM wave is coupled to square-shaped waveguide (0.0010mm x 0.0010mm), (a) Starting from the dispersion relatio

Post by answerhappygod »

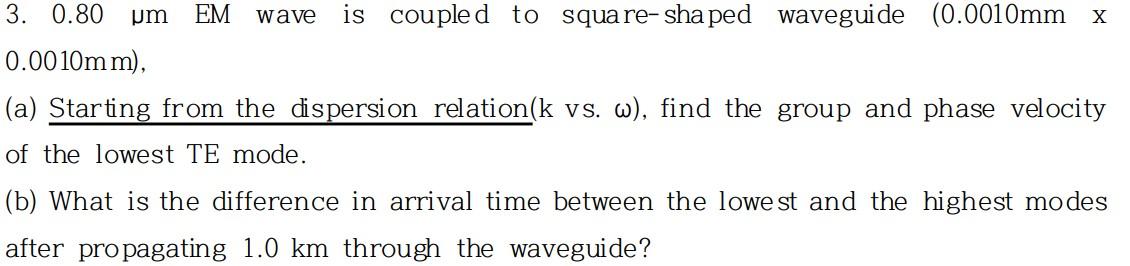

3 0 80 Um Em Wave Is Coupled To Square Shaped Waveguide 0 0010mm X 0 0010mm A Starting From The Dispersion Relatio 1
3 0 80 Um Em Wave Is Coupled To Square Shaped Waveguide 0 0010mm X 0 0010mm A Starting From The Dispersion Relatio 1 (44.75 KiB) Viewed 23 times
3. 0.80 um EM wave is coupled to square-shaped waveguide (0.0010mm x 0.0010mm), (a) Starting from the dispersion relation(k vs. w), find the group and phase velocity of the lowest TE mode. (b) What is the difference in arrival time between the lowest and the highest modes after propagating 1.0 km through the waveguide?
