(b) A 3 kg box A in Figure Q3 (b) enters a smooth ramp with a speed 3 m/s. It then collides with another 3 kg box B whic

[answerhappygod]

B A 3 Kg Box A In Figure Q3 B Enters A Smooth Ramp With A Speed 3 M S It Then Collides With Another 3 Kg Box B Whic 1 (93.63 KiB) Viewed 26 times

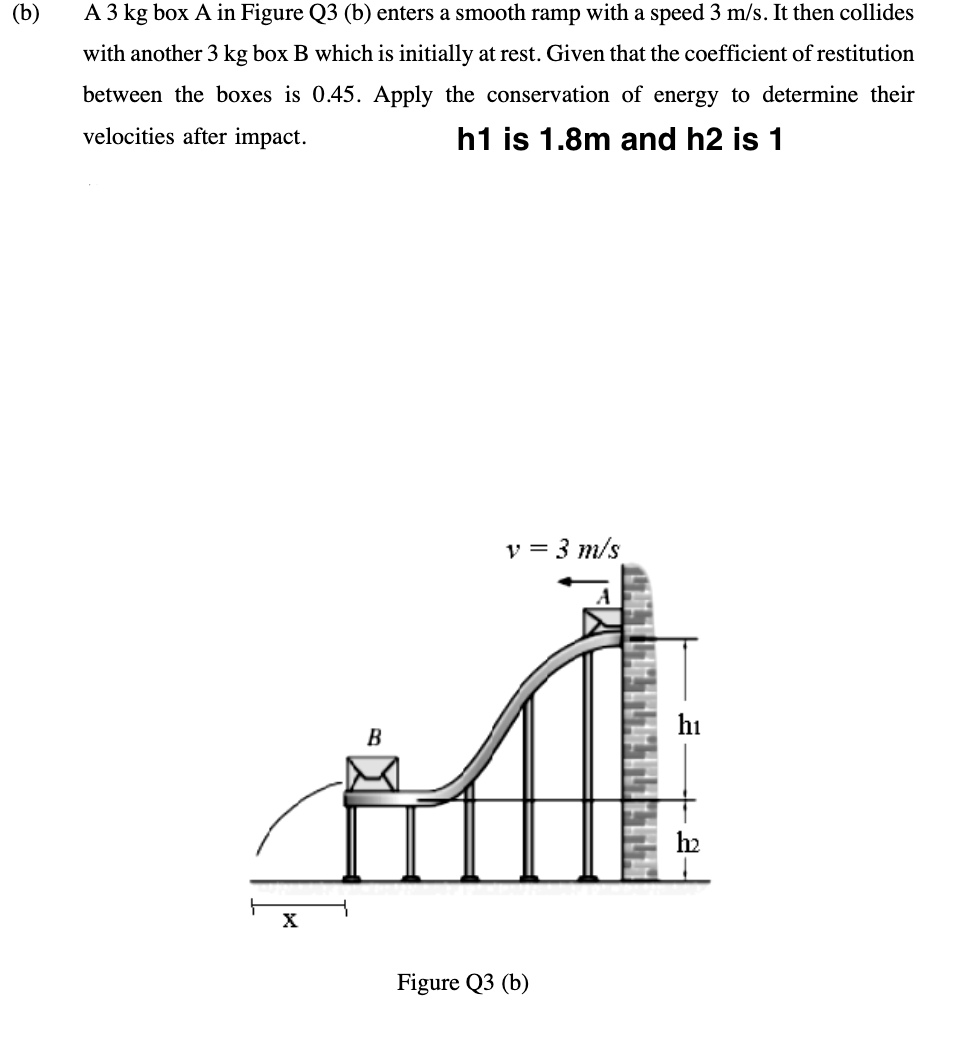

(b) A 3 kg box A in Figure Q3 (b) enters a smooth ramp with a speed 3 m/s. It then collides with another 3 kg box B which is initially at rest. Given that the coefficient of restitution between the boxes is 0.45. Apply the conservation of energy to determine their velocities after impact. h1 is 1.8m and h2 is 1 v = 3 m/s X B Figure Q3 (b) hı 2-
