Problem 2 (10 points): A ship is tied to the pier as shown in Fig 2. Points A and B are 6.0 m above (in the z direction)

[answerhappygod]

Problem 2 10 Points A Ship Is Tied To The Pier As Shown In Fig 2 Points A And B Are 6 0 M Above In The Z Direction 1 (136.09 KiB) Viewed 19 times

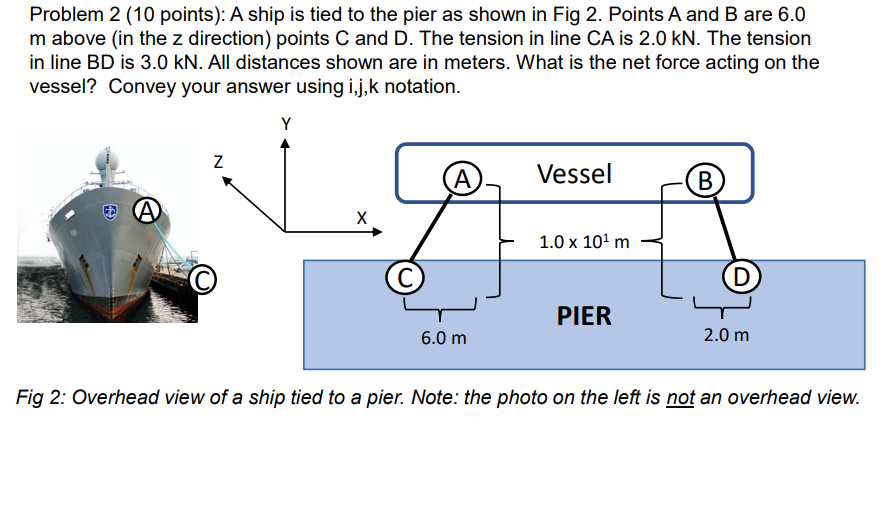

Problem 2 (10 points): A ship is tied to the pier as shown in Fig 2. Points A and B are 6.0 m above (in the z direction) points C and D. The tension in line CA is 2.0 kN. The tension in line BD is 3.0 kN. All distances shown are in meters. What is the net force acting on the vessel? Convey your answer using i,j,k notation. Y Z A Vessel B X 1.0 x 10¹ m (D PIER 6.0 m 2.0 m Fig 2: Overhead view of a ship tied to a pier. Note: the photo on the left is not an overhead view. C
