A temperature transducer output is to be fed to a pneumatic
controller. Design the necessary signal conditioning scheme and
implement the circuit with op-amp from given dc voltage (supply
voltage is 15v and Vin1=2v and Vin2=3v from 5.6 Zener)
A Temperature Transducer Output Is To Be Fed To A Pneumatic Controller Design The Necessary Signal Conditioning Scheme 1 (16.59 KiB) Viewed 12 times

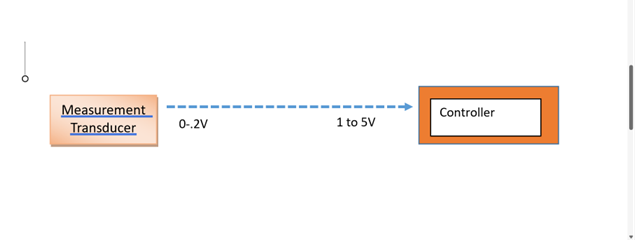

Measurement Transducer 0-.2V 1 to 5V Controller
