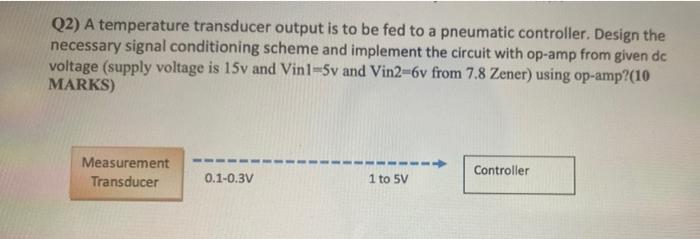

Q2) A temperature transducer output is to be fed to a pneumatic controller. Design the necessary signal conditioning scheme and implement the circuit with op-amp from given dc voltage (supply voltage is 15v and Vin1-5v and Vin2-6v from 7.8 Zener) using op-amp?(10 MARKS) Controller Measurement Transducer 0.1-0.3V 1 to 5V
