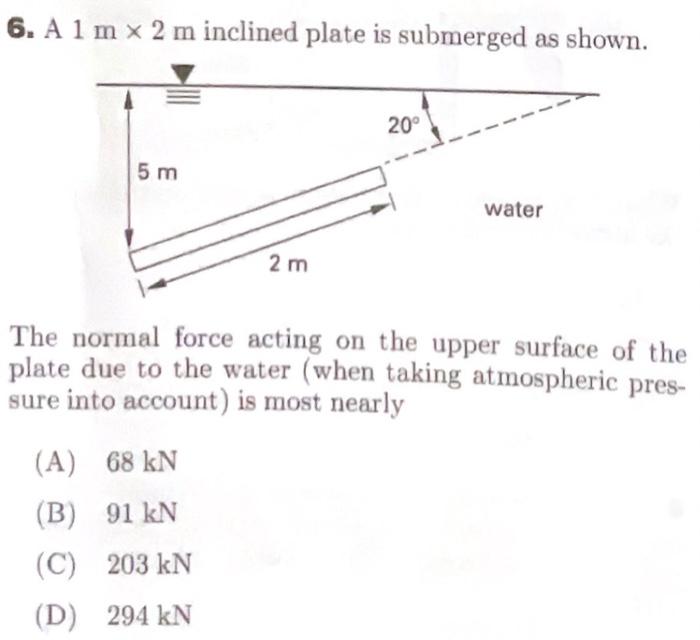

6. A 1 mx 2 m inclined plate is submerged as shown. 20° 5 m water 2 m The normal force acting on the upper surface of the plate due to the water (when taking atmospheric pres- sure into account) is most nearly (A) 68 KN (B) 91 kN (C) 203 kN (D) 294 KN
