Question 2 a) If a 500 N force F₁ is applied to the piston (as shown in Fig. Q2(a)) with 5 cm diameter, what is the magn

Post by answerhappygod »

Question 2 A If A 500 N Force F Is Applied To The Piston As Shown In Fig Q2 A With 5 Cm Diameter What Is The Magn 1
Question 2 A If A 500 N Force F Is Applied To The Piston As Shown In Fig Q2 A With 5 Cm Diameter What Is The Magn 1 (110.63 KiB) Viewed 18 times

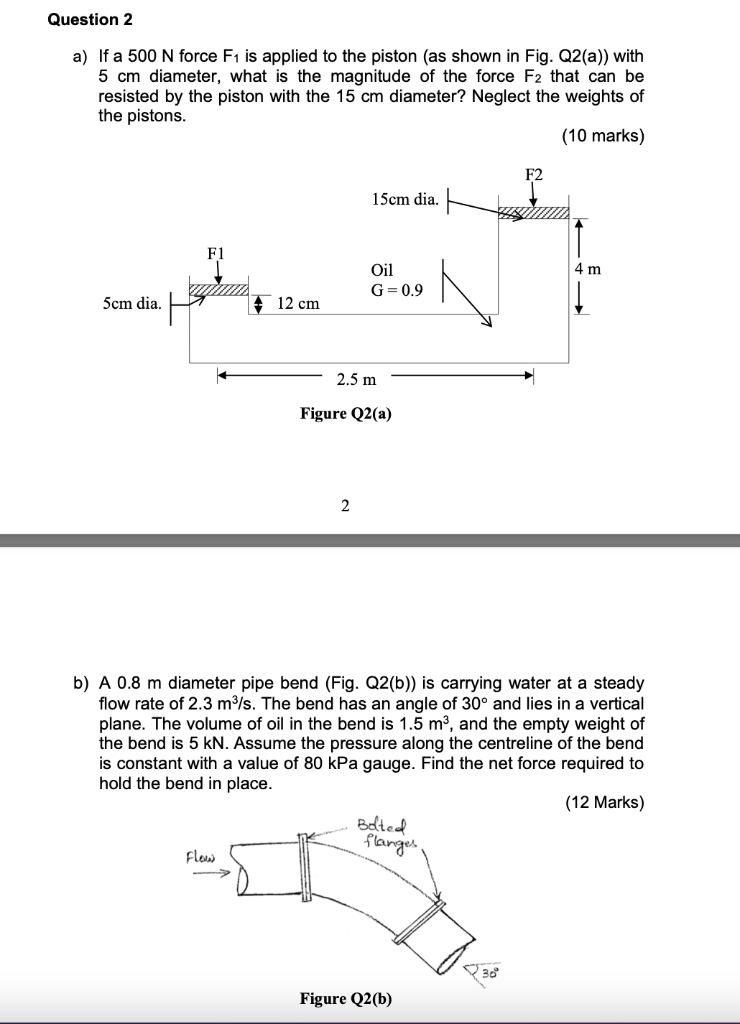

Question 2 a) If a 500 N force F₁ is applied to the piston (as shown in Fig. Q2(a)) with 5 cm diameter, what is the magnitude of the force F2 that can be resisted by the piston with the 15 cm diameter? Neglect the weights of the pistons. (10 marks) 15cm dia. F1 4 m Oil G=0.9 5cm dia. 2.5 m Figure Q2(a) 2 b) A 0.8 m diameter pipe bend (Fig. Q2(b)) is carrying water at a steady flow rate of 2.3 m³/s. The bend has an angle of 30° and lies in a vertical plane. The volume of oil in the bend is 1.5 m³, and the empty weight of the bend is 5 kN. Assume the pressure along the centreline of the bend is constant with a value of 80 kPa gauge. Find the net force required to hold the bend in place. (12 Marks) Bolted flanges. Flow D 12 cm Figure Q2(b) 30°
30° Figure Q2(b) c) Briefly outline the changes to the momentum equation(s) used in Q2(b) if the pipe bend is in horizontal plane. (3 Marks) (Total 25 Marks)
