Question 4 Using the given source and demands, shown in Fig. 04, and pipe properties (give in Table Q4) analyse the pipe

[answerhappygod]

Question 4 Using The Given Source And Demands Shown In Fig 04 And Pipe Properties Give In Table Q4 Analyse The Pipe 1 (132.6 KiB) Viewed 12 times

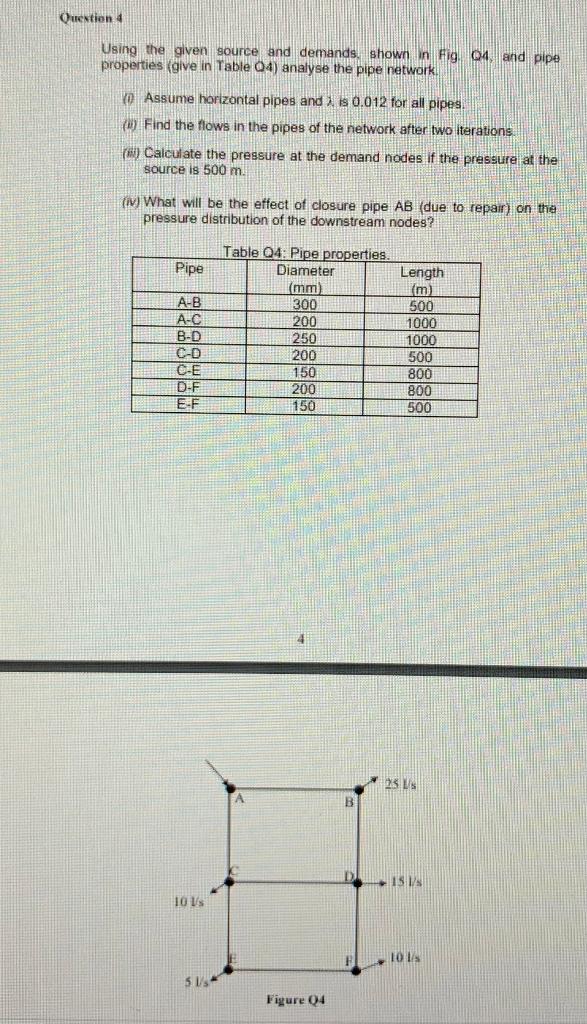

Question 4 Using the given source and demands, shown in Fig. 04, and pipe properties (give in Table Q4) analyse the pipe network. (Assume horizontal pipes and is 0.012 for all pipes. () Find the flows in the pipes of the network after two iterations () Calculate the pressure at the demand nodes if the pressure at the source is 500 m. (iv) What will be the effect of closure pipe AB (due to repair) on the pressure distribution of the downstream nodes? Table Q4: Pipe properties. Diameter Pipe Length (mm) (m) A-B 300 500 A-C 200 1000 71 B-D 250 1000 C-D 200 500 C-E 150 800 D-F 200 800 E-F 150 500 25 Us 10 Us 5 l/s Figure Q4 D. 15 1/8 10 1/
