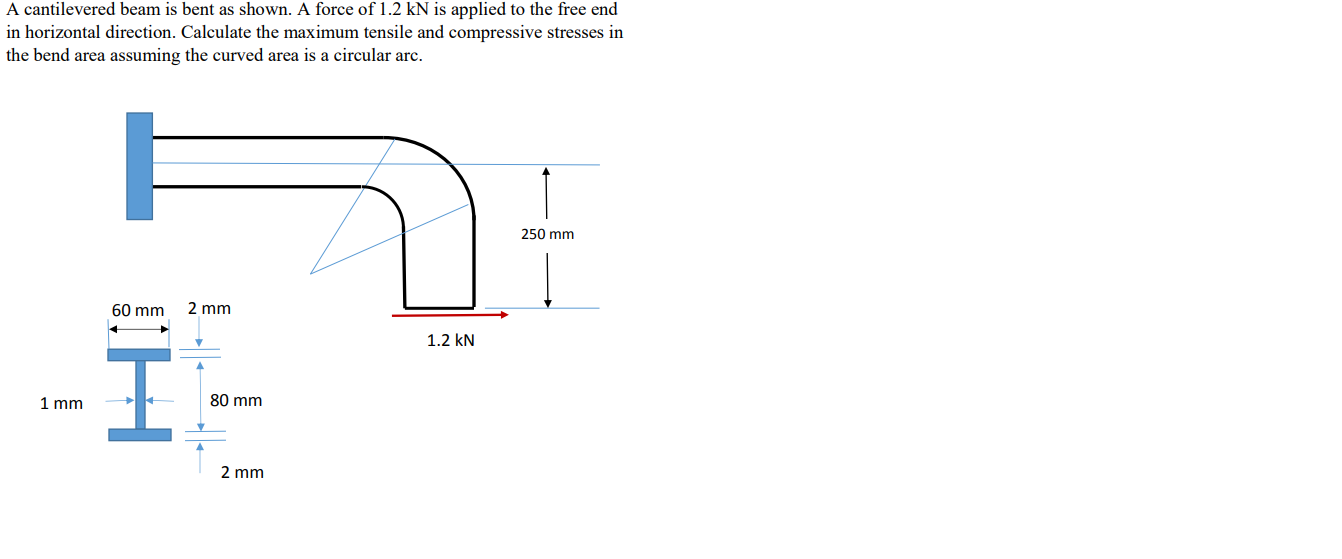

A cantilevered beam is bent as shown. A force of 1.2 kN is
applied to the free end in horizontal direction. Calculate the
maximum tensile and compressive stresses in the bend area assuming
the curved area is a circular arc.
A Cantilevered Beam Is Bent As Shown A Force Of 1 2 Kn Is Applied To The Free End In Horizontal Direction Calculate Th 1 (36.45 KiB) Viewed 6 times
A cantilevered beam is bent as shown. A force of 1.2 kN is applied to the free end in horizontal direction. Calculate the maximum tensile and compressive stresses in the bend area assuming the curved area is a circular arc. 250 mm 60 mm 2 mm 1 mm H 80 mm 2 mm 1.2 kN
