A Show Time Remaining A The cantilevered rectangular bar is subjected to the force of F = 30kN. Determine the principal

Post by answerhappygod »

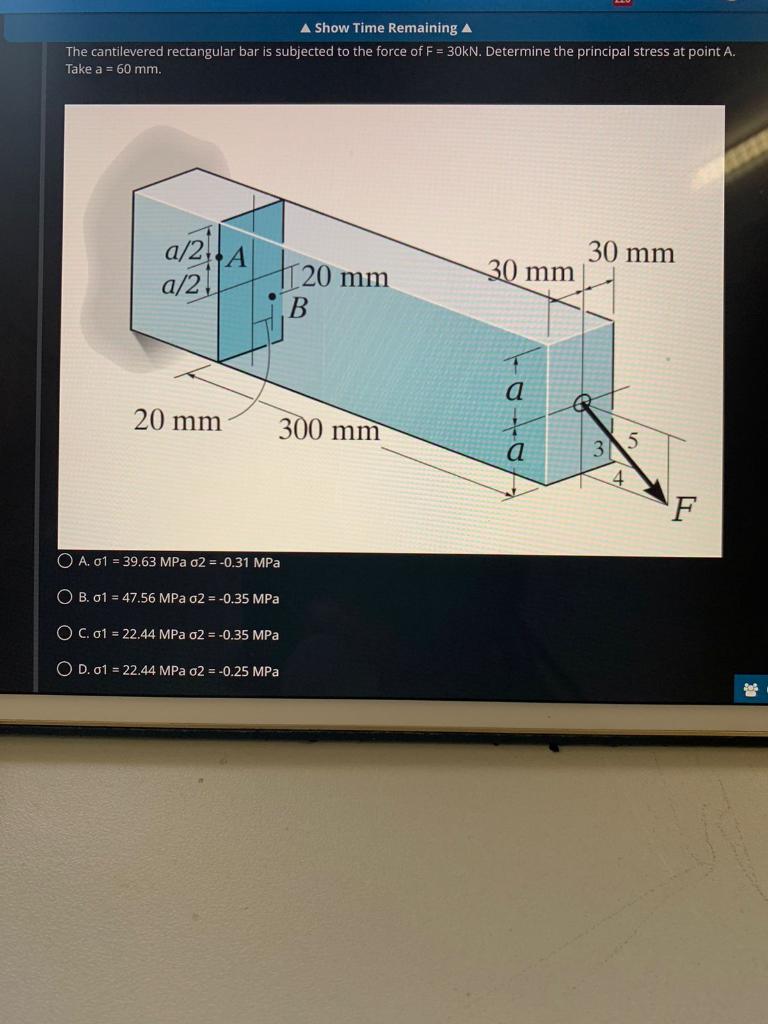

A Show Time Remaining A The Cantilevered Rectangular Bar Is Subjected To The Force Of F 30kn Determine The Principal 1
A Show Time Remaining A The Cantilevered Rectangular Bar Is Subjected To The Force Of F 30kn Determine The Principal 1 (77.68 KiB) Viewed 16 times
A Show Time Remaining A The cantilevered rectangular bar is subjected to the force of F = 30kN. Determine the principal stress at point A. Take a = 60 mm. 30 mm a/2 A a/2 30 mm 20 mm B 300 mm 5 20 mm A. 01 39.63 MPa 02 = -0.31 MPa B. 01 = 47.56 MPa 02 = -0.35 MPa OC. 01 = 22.44 MPa 02 = -0.35 MPa OD. 01 = 22.44 MPa o2 = -0.25 MPa 10401. a a 31 F
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
