PROBLEM 1 A 300mm by 450mm rectangular beam carries a uniform ultimate load and concentrated load as shown. The beam is

Post by answerhappygod »

Problem 1 A 300mm By 450mm Rectangular Beam Carries A Uniform Ultimate Load And Concentrated Load As Shown The Beam Is 1
Problem 1 A 300mm By 450mm Rectangular Beam Carries A Uniform Ultimate Load And Concentrated Load As Shown The Beam Is 1 (35.34 KiB) Viewed 8 times
pls answer asap i will upvote!!!
fc =49 fy= 340 mpa
Calculate the ultimate moment capacity of the final section in kN.m.

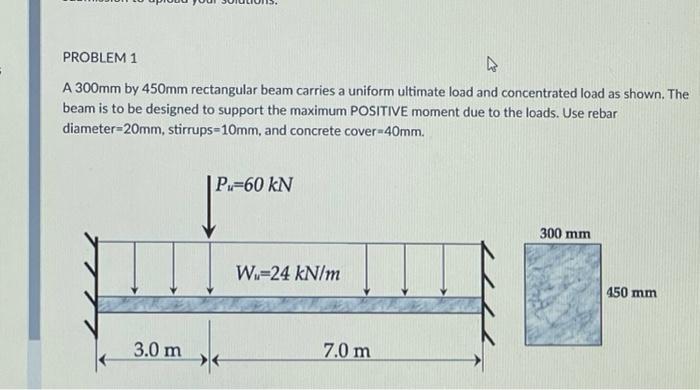

PROBLEM 1 A 300mm by 450mm rectangular beam carries a uniform ultimate load and concentrated load as shown. The beam is to be designed to support the maximum POSITIVE moment due to the loads. Use rebar diameter 20mm, stirrups-10mm, and concrete cover-40mm. Pu=60 kN 300 mm 3.0 m W₁-24 kN/m 7.0 m 450 mm
