Calculate the vertical force reaction at left support the beam in kN.

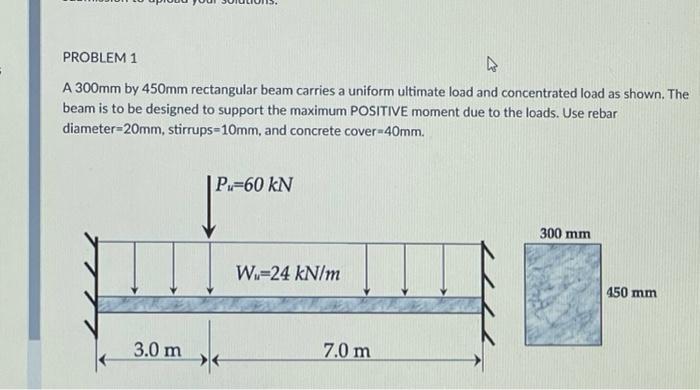

PROBLEM 1 A 300mm by 450mm rectangular beam carries a uniform ultimate load and concentrated load as shown. The beam is to be designed to support the maximum POSITIVE moment due to the loads. Use rebar diameter 20mm, stirrups-10mm, and concrete cover-40mm. Pu=60 kN 300 mm 3.0 m W₁-24 kN/m 7.0 m 450 mm
