Question 2 A RA 2.5 m 1m 12 kN C 10 kN/m D Im RD (20 marks)

Post by answerhappygod »

Question 2 A Ra 2 5 M 1m 12 Kn C 10 Kn M D Im Rd 20 Marks 1
Question 2 A Ra 2 5 M 1m 12 Kn C 10 Kn M D Im Rd 20 Marks 1 (340.24 KiB) Viewed 7 times

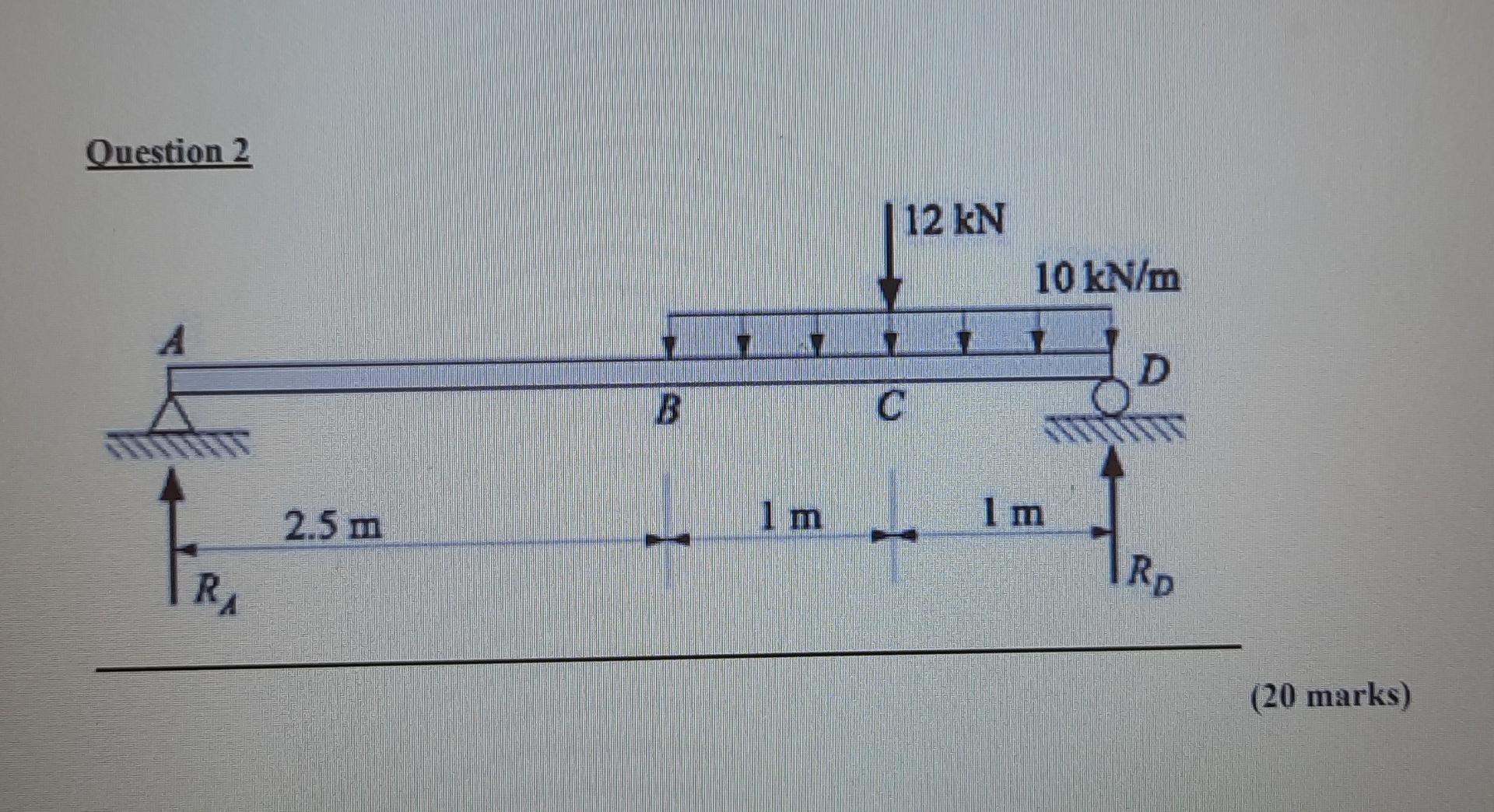

For this beam, set up an appropriate equation together with tabular calculations/values to plot the shear force and bending moment diagrams. In addition, indicate the maximum shear force and bending moment for this question.
