Please calculate Fixed End Moments (FMI) and end moment for the
frame structure below. Please use Moment Distribution method.
given that:
- Differential Temperature, T1 = 18oC and T2 =
-30oC, is acting on Member AB
- E = 200 GPa acting on all of the members in the frame
structure below
- IAB = 2.77 x 10-4
m4
- ICD = 2.77 x 10-4
m4
- IBC= 8.75 x 10-4 m4
- coefficient of thermal expansion
= 10−5/℃.
Please Calculate Fixed End Moments Fmi And End Moment For The Frame Structure Below Please Use Moment Distribution Me 1 (22.7 KiB) Viewed 19 times

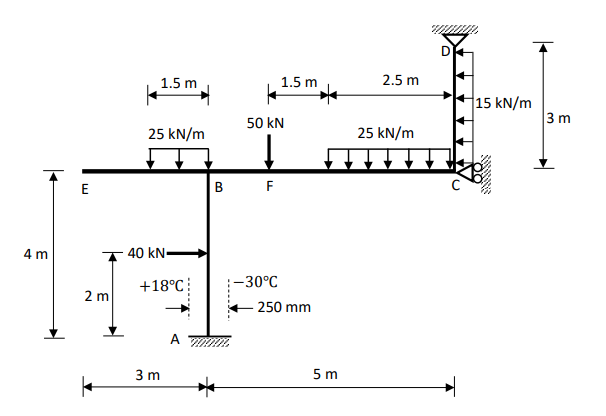

4 m E 2 m 1.5 m 25 kN/m 40 kN. +18°C A 3 m B 1.5 m 50 kN ↓ F -30°C +250 mm * 5m 2.5 m 25 kN/m O 15 kN/m OC 3 m
