3. Construct the internal force diagrams for the statically determinate multispan beam shown in the following figure. (t

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

3. Construct the internal force diagrams for the statically determinate multispan beam shown in the following figure. (t

Post by answerhappygod »

3 Construct The Internal Force Diagrams For The Statically Determinate Multispan Beam Shown In The Following Figure T 1
3 Construct The Internal Force Diagrams For The Statically Determinate Multispan Beam Shown In The Following Figure T 1 (26.31 KiB) Viewed 15 times

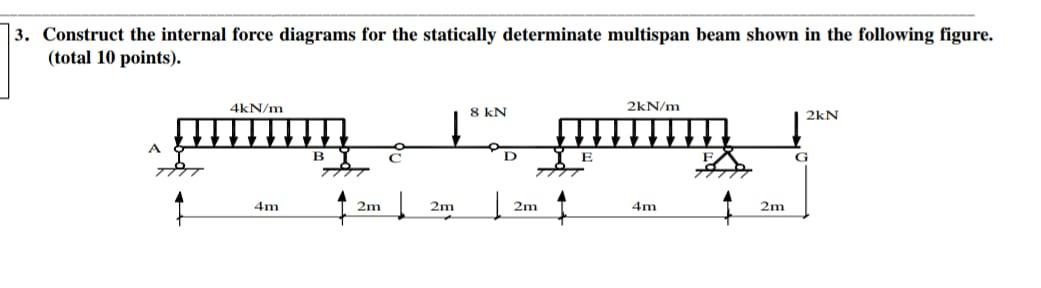

3. Construct the internal force diagrams for the statically determinate multispan beam shown in the following figure. (total 10 points). 2kN/m 4kN/m 8 kN 2kN 4m 4m B 2m 2m D 2m E 2m G
